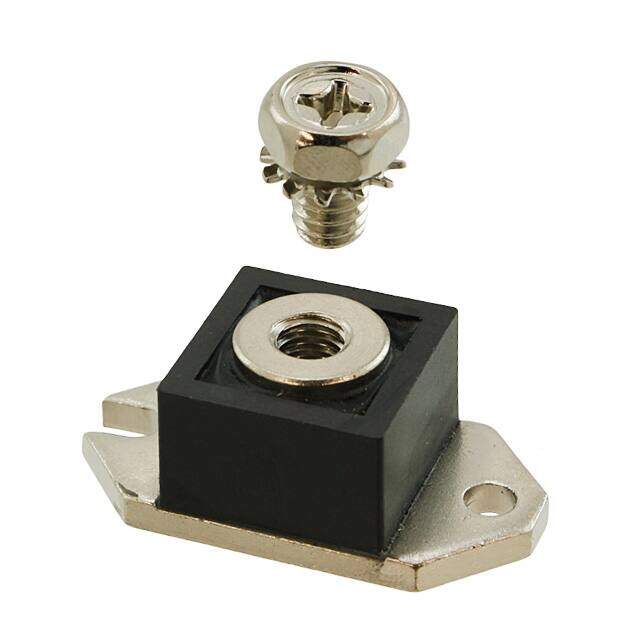

MBRH120100R
RoHS
RoHS compliant
RoHS compliantPackage D-67
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
Schottky Diodes & Rectifiers SI PWR SCHOTTKY D67 20-100V 120A100P/70R
PDF
/
Buying Options
Total Price: USD $114.8
Unit Price: USD $114.799976
≥1 USD $114.799976
≥216 USD $45.805768
≥504 USD $44.27624
≥1008 USD $43.518696
Inventory: 2438
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status PRODUCTION (Last Updated: 6 months ago)
Physical
Mount Cable, Chassis Mount
Mounting Type Chassis Mount
Package / Case D-67
Number of Pins 67
Diode Element Material SILICON
Technical
Packaging Bulk
Published 2017
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 1
Termination IDT
ECCN Code EAR99
Max Operating Temperature 175°C
Min Operating Temperature -40°C
HTS Code 8541.10.00.80
Pitch 2.54mm
Terminal Position UPPER
Orientation Right Angle
Terminal Form UNSPECIFIED
JESD-30 Code R-PUFM-X1
Number of Contacts 18
Number of Elements 1
Contact Resistance 20mOhm
Configuration SINGLE
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Schottky, Reverse Polarity
Current - Reverse Leakage @ Vr 4mA @ 20V
Voltage - Forward (Vf) (Max) @ If 840mV @ 120A
Case Connection ANODE
Max Voltage Rating (DC) 250.25kV
Forward Current 120A
Max Reverse Leakage Current 1μA
Max Surge Current 2kA
Application POWER
Max Reverse Voltage (DC) 100V
Average Rectified Current 120A
Number of Phases 1
Peak Reverse Current 1A
Max Repetitive Reverse Voltage (Vrrm) 100V
Compliance
RoHS Status RoHS Compliant
Alternative Model
