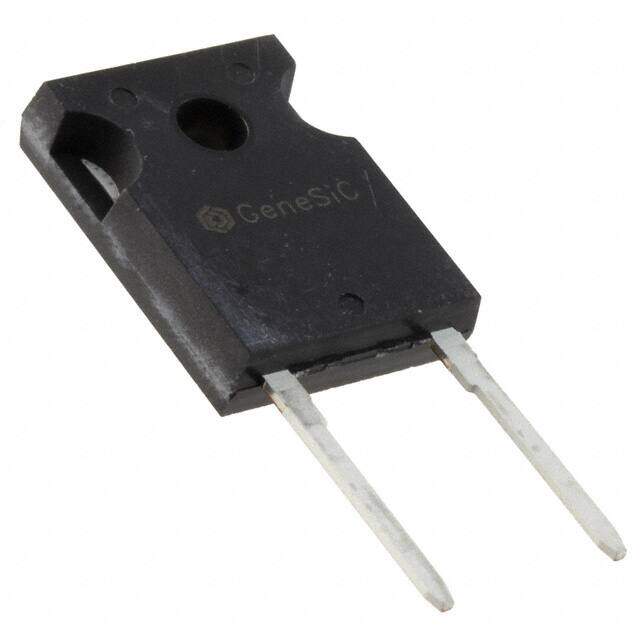

GB50SLT12-247
RoHS
RoHS compliant
RoHS compliantPackage TO-247-2
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 1.2KV 50A TO247AC
PDF
/
Inventory: 1548
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-247-2
Number of Pins 2
Technical
Packaging Tube
Pbfree Code yes
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Max Operating Temperature 175°C
Min Operating Temperature -55°C
HTS Code 8541.10.00.80
Subcategory Rectifier Diodes
Number of Elements 1
Element Configuration Single
Speed No Recovery Time > 500mA (Io)
Diode Type Silicon Carbide Schottky
Current - Reverse Leakage @ Vr 1mA @ 1200V
Voltage - Forward (Vf) (Max) @ If 1.8V @ 50A
Forward Current 50A
Operating Temperature - Junction -55°C~175°C
Voltage - DC Reverse (Vr) (Max) 1200V
Forward Voltage 1.8V
Max Reverse Voltage (DC) 1.2kV
Average Rectified Current 50A
Reverse Recovery Time 0ns
Max Repetitive Reverse Voltage (Vrrm) 1.2kV
Capacitance @ Vr, F 2940pF @ 1V 1MHz
Max Forward Surge Current (Ifsm) 350A
Natural Thermal Resistance 0.242 °C/W
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
