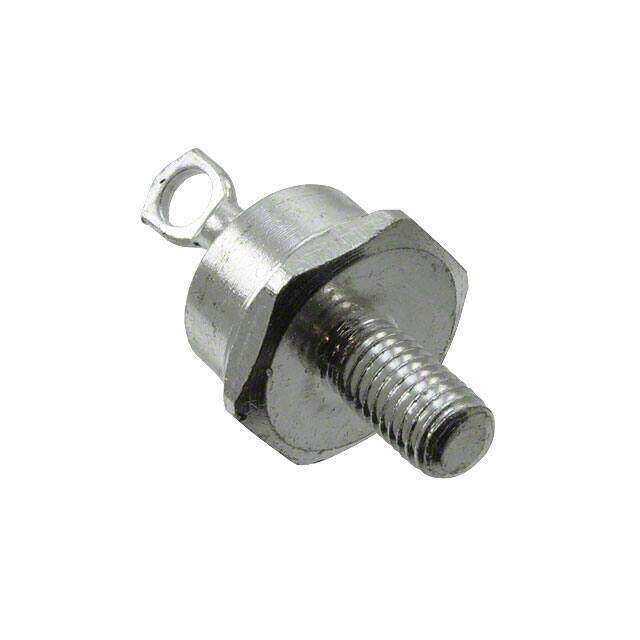

FR70G02
RoHS
RoHS compliant
RoHS compliantPackage DO-203AB, DO-5, Stud
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
Rectifiers 400V 70A Fast Recovery
PDF
/
Buying Options
Total Price: USD $48.45
Unit Price: USD $48.453887
≥1 USD $48.453887
≥200 USD $19.333765
≥500 USD $18.687819
≥1000 USD $18.368784
Inventory: 9042
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Lifecycle Status PRODUCTION (Last Updated: 6 months ago)
Physical
Mount Chassis, Stud
Mounting Type Chassis, Stud Mount
Package / Case DO-203AB, DO-5, Stud
Number of Pins 2
Diode Element Material SILICON
Technical
Packaging Bulk
Published 2010
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 1
ECCN Code EAR99
HTS Code 8541.10.00.80
Terminal Position UPPER
Terminal Form SOLDER LUG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code O-MUPM-D1
Number of Elements 1
Element Configuration Single
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 25μA @ 100V
Voltage - Forward (Vf) (Max) @ If 1.4V @ 70A
Case Connection CATHODE
Forward Current 70A
Operating Temperature - Junction -40°C~125°C
Max Surge Current 870A
Forward Voltage 1.5V
Max Reverse Voltage (DC) 400V
Average Rectified Current 70A
Number of Phases 1
Reverse Recovery Time 200 ns
Peak Reverse Current 25μA
Max Repetitive Reverse Voltage (Vrrm) 400V
Reverse Voltage 400V
Recovery Time 200 ns
Compliance
RoHS Status RoHS Compliant
