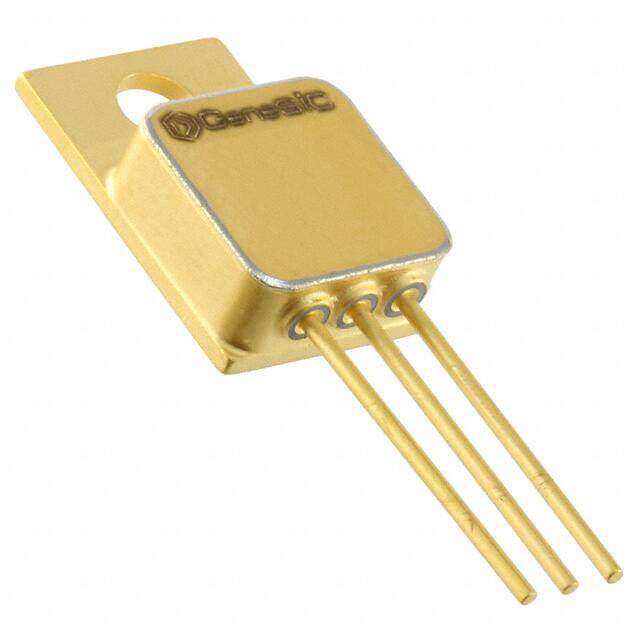

1N8032-GA
RoHS
/
Package TO-257-3
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
Schottky Diodes & Rectifiers 650V, 5A, 225 Deg C
PDF
/
Inventory: 2021
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Technical
Natural Thermal Resistance 3.4 °C/W
Max Forward Surge Current (Ifsm) 32A
Capacitance @ Vr, F 274pF @ 1V 1MHz
Max Repetitive Reverse Voltage (Vrrm) 650V
Reverse Recovery Time 0ns
Average Rectified Current 2.5A
Max Reverse Voltage (DC) 650V
Forward Voltage 1.7V
Output Current-Max 8A
Operating Temperature - Junction -55°C~250°C
Forward Current 2.5A
Voltage - Forward (Vf) (Max) @ If 1.3V @ 2.5A
Current - Reverse Leakage @ Vr 5μA @ 650V
Diode Type Silicon Carbide Schottky
Speed No Recovery Time > 500mA (Io)
Element Configuration Single
Number of Elements 1
Operating Temperature (Max) 250°C
Base Part Number 1N8032
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2013
Packaging Tube
Physical
Package / Case TO-257-3
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 24 Weeks
