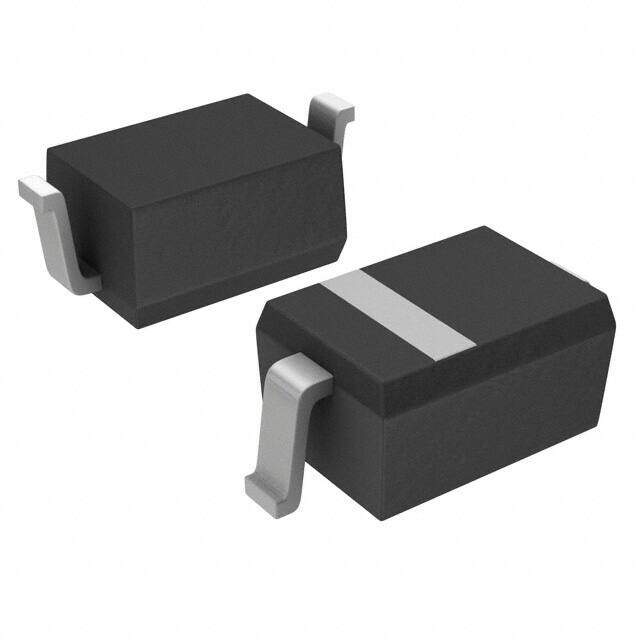

RB551V-30-HF
RoHS
RoHS compliant
RoHS compliantPackage SC-76, SOD-323
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 20V 500MA SOD323
PDF
/
Buying Options
Total Price: USD $0.54
Unit Price: USD $0.5377
≥1 USD $0.5377
≥10 USD $0.4408
≥100 USD $0.4275
≥500 USD $0.41325
≥1000 USD $0.39995
≥10000 USD $0.35815
Inventory: 1167
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Reverse Current-Max 100μA
Non-rep Pk Forward Current-Max 2A
Number of Phases 1
Average Rectified Current 500mA
Max Reverse Voltage (DC) 20V
Voltage - DC Reverse (Vr) (Max) 20V
Application GENERAL PURPOSE
Output Current-Max 0.5A
Operating Temperature - Junction 125°C Max
Voltage - Forward (Vf) (Max) @ If 470mV @ 500mA
Current - Reverse Leakage @ Vr 100μA @ 20V
Diode Type Schottky
Speed Fast Recovery =< 500ns, > 200mA (Io)
Configuration SINGLE
Number of Elements 1
Operating Temperature (Max) 125°C
JESD-30 Code R-PDSO-G2
Base Part Number RB551V-30
Terminal Form GULL WING
Terminal Position DUAL
HTS Code 8541.10.00.70
Additional Feature LOW LEAKAGE CURRENT
Terminal Finish Gold (Au)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Published 2011
Packaging Tape & Reel (TR)
Physical
Diode Element Material SILICON
Package / Case SC-76, SOD-323
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
