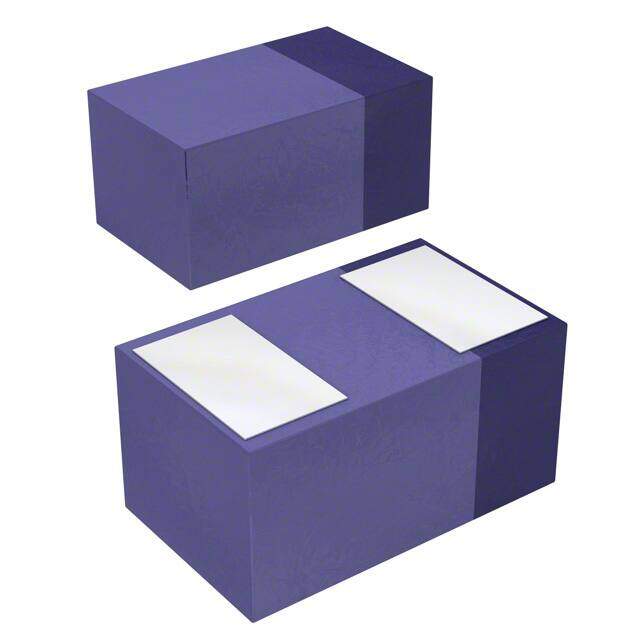

CDBQR42
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1005 Metric)
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 30V 200MA 0402
PDF
/
Buying Options
Total Price: USD $0.31
Unit Price: USD $0.30977
≥1 USD $0.30977
≥10 USD $0.292227
≥100 USD $0.275691
≥500 USD $0.260082
≥1000 USD $0.245368
Inventory: 1142
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Technical
Packaging Tape & Reel (TR)
Published 2011
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
HTS Code 8541.10.00.70
Subcategory Rectifier Diodes
Max Power Dissipation 125mW
Base Part Number CDBQR42
Case Code (Metric) 1005
Case Code (Imperial) 0402
Operating Temperature (Max) 125°C
Number of Elements 1
Configuration SINGLE
Speed Small Signal =< 200mA (Io), Any Speed
Diode Type Schottky
Current - Reverse Leakage @ Vr 500nA @ 25V
Voltage - Forward (Vf) (Max) @ If 1V @ 200mA
Max Reverse Leakage Current 500nA
Operating Temperature - Junction 125°C Max
Max Surge Current 4A
Output Current-Max 0.2A
Max Reverse Voltage (DC) 30V
Average Rectified Current 200mA
Reverse Recovery Time 5 ns
Capacitance @ Vr, F 10pF @ 1V 1MHz
Non-rep Pk Forward Current-Max 4A
Recovery Time 5 ns
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
