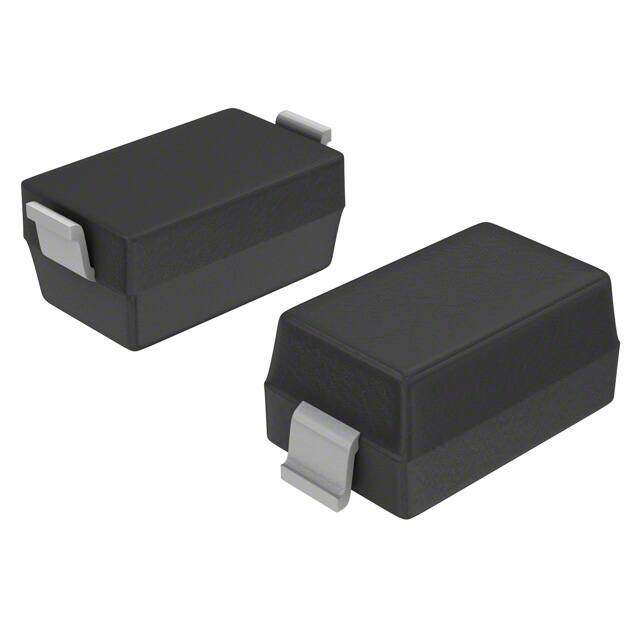

CDBM120L-G
RoHS
RoHS compliant
RoHS compliantPackage SOD-123T
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 20V 1A MINISMA
PDF
/
Inventory: 7486
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SOD-123T
Diode Element Material SILICON
Technical
Packaging Tape & Reel (TR)
Published 2012
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
HTS Code 8541.10.00.80
Subcategory Rectifier Diodes
Terminal Position DUAL
Terminal Form FLAT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number CDBM120
JESD-30 Code R-PDSO-F2
Operating Temperature (Max) 100°C
Number of Elements 1
Configuration SINGLE
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Schottky
Current - Reverse Leakage @ Vr 1mA @ 20V
Voltage - Forward (Vf) (Max) @ If 380mV @ 1A
Operating Temperature - Junction -55°C~100°C
Output Current-Max 1A
Voltage - DC Reverse (Vr) (Max) 20V
Max Reverse Voltage (DC) 20V
Average Rectified Current 1A
Non-rep Pk Forward Current-Max 30A
Compliance
RoHS Status ROHS3 Compliant
