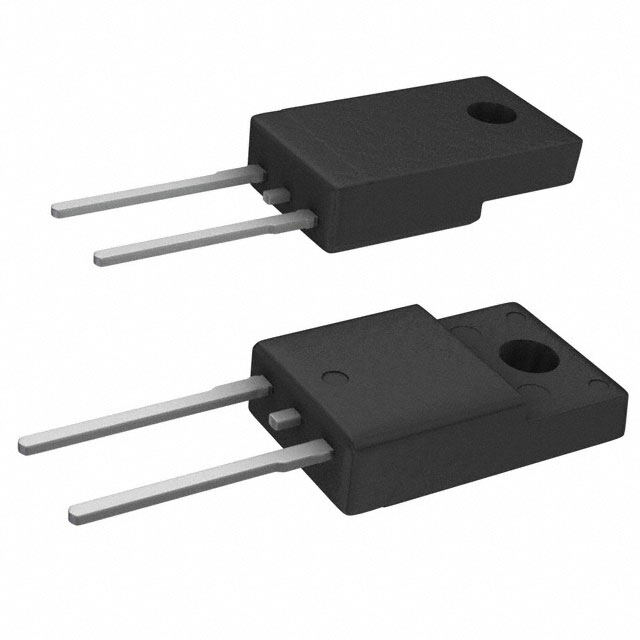

CDBJFSC10650-G
RoHS
RoHS compliant
RoHS compliantPackage TO-220-2 Full Pack
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE, SIC STKY 10A 650V TO-220F
PDF
/
Buying Options
Total Price: USD $5.42
Unit Price: USD $5.4208
≥1 USD $5.4208
Inventory: 49
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Through Hole
Package / Case TO-220-2 Full Pack
Technical
Packaging Tube
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Speed No Recovery Time > 500mA (Io)
Diode Type Silicon Carbide Schottky
Current - Reverse Leakage @ Vr 100μA @ 650V
Voltage - Forward (Vf) (Max) @ If 1.7V @ 10A
Operating Temperature - Junction -55°C~175°C
Voltage - DC Reverse (Vr) (Max) 650V
Current - Average Rectified (Io) 10A DC
Reverse Recovery Time 0ns
Capacitance @ Vr, F 710pF @ 0V 1MHz
Compliance
RoHS Status ROHS3 Compliant
