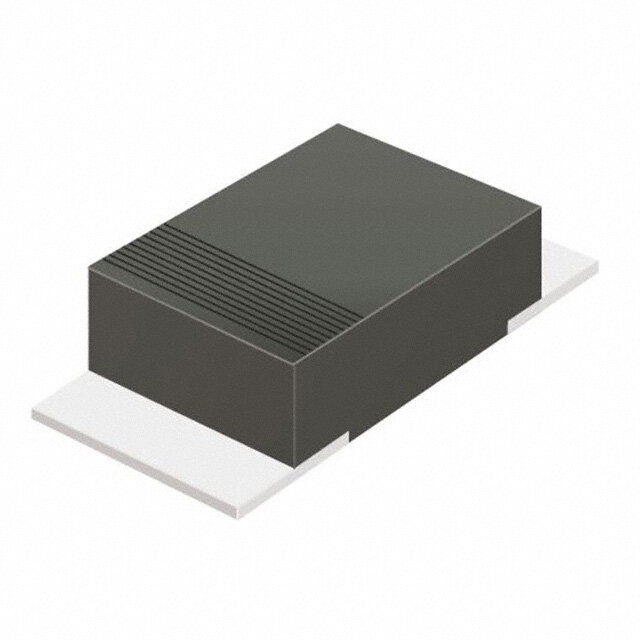

CDBFN140-G
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, Flat Lead
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 40V 1A SOD323
PDF
/
Buying Options
Total Price: USD $0.09
Unit Price: USD $0.09405
≥1 USD $0.09405
≥10 USD $0.0779
≥100 USD $0.07505
≥500 USD $0.07315
≥1000 USD $0.0703
Inventory: 1433
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Non-rep Pk Forward Current-Max 30A
Capacitance @ Vr, F 120pF @ 4V 1MHz
Average Rectified Current 1A
Max Reverse Voltage (DC) 40V
Current - Average Rectified (Io) 1A DC
Output Current-Max 1A
Operating Temperature - Junction -50°C~125°C
Voltage - Forward (Vf) (Max) @ If 550mV @ 1A
Current - Reverse Leakage @ Vr 500μA @ 40V
Diode Type Schottky
Speed Fast Recovery =< 500ns, > 200mA (Io)
Configuration SINGLE
Number of Elements 1
Operating Temperature (Max) 125°C
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2011
Packaging Tape & Reel (TR)
Physical
Package / Case 2-SMD, Flat Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
