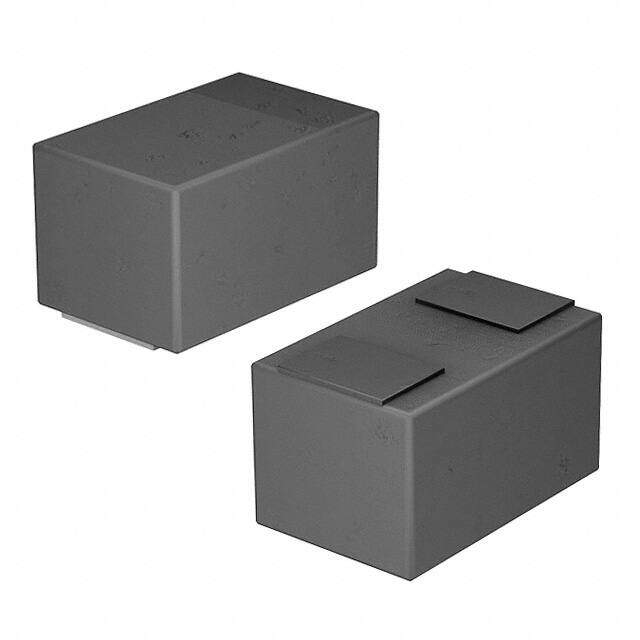

CDBER0230R-HF
RoHS
RoHS compliant
RoHS compliantPackage 0503 (1308 Metric)
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 30V 200MA 0503
PDF
/
Inventory: 9566
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Non-rep Pk Forward Current-Max 1A
Average Rectified Current 200mA
Max Reverse Voltage (DC) 30V
Voltage - DC Reverse (Vr) (Max) 30V
Output Current-Max 0.2A
Operating Temperature - Junction 125°C Max
Voltage - Forward (Vf) (Max) @ If 600mV @ 200mA
Current - Reverse Leakage @ Vr 1μA @ 10V
Diode Type Schottky
Speed Small Signal =< 200mA (Io), Any Speed
Power Dissipation-Max 0.15W
Configuration SINGLE
Number of Elements 1
Operating Temperature (Max) 125°C
JESD-30 Code R-PBCC-N2
Base Part Number CDBER0230
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position BOTTOM
Subcategory Rectifier Diodes
HTS Code 8541.10.00.70
Terminal Finish Gold (Au)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Published 2011
Packaging Tape & Reel (TR)
Physical
Diode Element Material SILICON
Package / Case 0503 (1308 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
