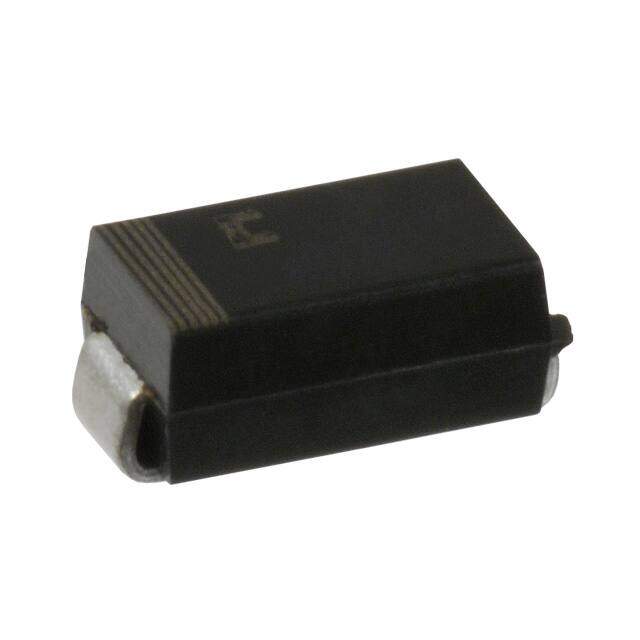

CDBA160SLR-HF
RoHS
/
Package DO-214AC, SMA
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 60V 1A DO214AC
PDF
/
Inventory: 5131
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Technical
Packaging Tape & Reel (TR)
Published 2012
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
HTS Code 8541.10.00.80
Subcategory Rectifier Diodes
Base Part Number CDBA160
Operating Temperature (Max) 150°C
Number of Elements 1
Configuration SINGLE
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Schottky
Current - Reverse Leakage @ Vr 1mA @ 60V
Voltage - Forward (Vf) (Max) @ If 500mV @ 2A
Operating Temperature - Junction -50°C~150°C
Output Current-Max 1A
Current - Average Rectified (Io) 1A DC
Max Reverse Voltage (DC) 60V
Average Rectified Current 1A
Capacitance @ Vr, F 120pF @ 4V 1MHz
Non-rep Pk Forward Current-Max 30A
Compliance
RoHS Status RoHS Compliant
