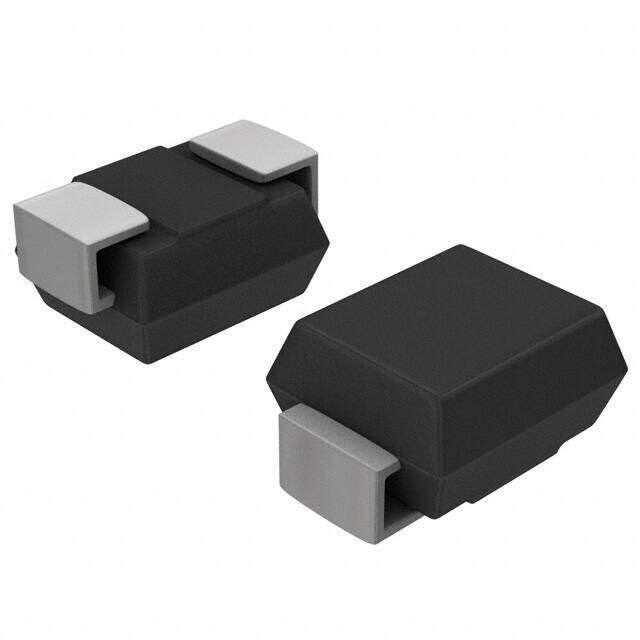

CD214B-B130LF
RoHS
RoHS compliant
RoHS compliantPackage DO-214AA, SMB
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 30V 1A DO214AA
PDF
/
Inventory: 2535
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Number of Pins 2
Supplier Device Package DO-214AA (SMB)
Technical
Packaging Tape & Reel (TR)
Published 2008
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Base Part Number CD214B
Element Configuration Single
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Schottky
Current - Reverse Leakage @ Vr 500μA @ 30V
Voltage - Forward (Vf) (Max) @ If 500mV @ 1A
Forward Current 1A
Max Reverse Leakage Current 500μA
Operating Temperature - Junction -55°C~125°C
Max Surge Current 30A
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 1A
Forward Voltage 500mV
Max Reverse Voltage (DC) 30V
Average Rectified Current 1A
Peak Reverse Current 500μA
Max Repetitive Reverse Voltage (Vrrm) 30V
Capacitance @ Vr, F 110pF @ 4V 1MHz
Peak Non-Repetitive Surge Current 30A
Compliance
RoHS Status ROHS3 Compliant
