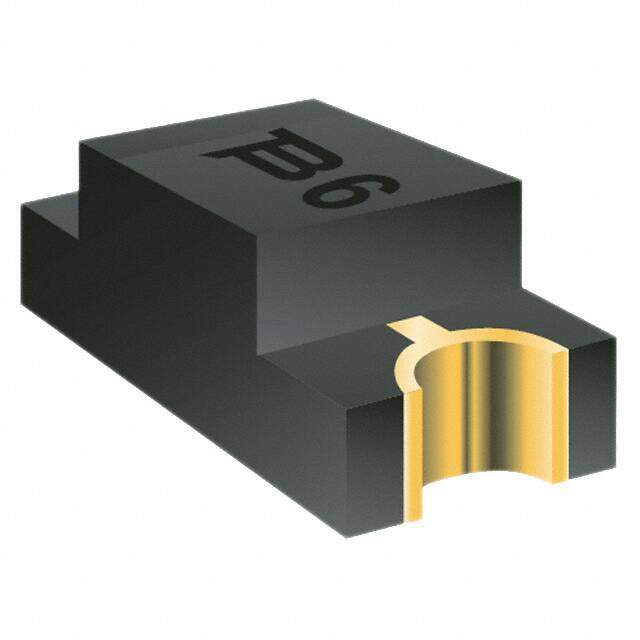

CD2010-B140
RoHS
RoHS compliant
RoHS compliantPackage Chip, Concave Terminals
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
Diode Schottky 40V 1A 2-Pin SMD T/R
PDF
/
Inventory: 4763
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Chip, Concave Terminals
Number of Pins 2
Diode Element Material SILICON
Technical
Packaging Tape & Reel (TR)
Published 2005
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Additional Feature FREE WHEELING DIODE, LOW POWER LOSS
HTS Code 8541.10.00.80
Terminal Position DUAL
Terminal Form WRAP AROUND
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number CD2010
Pin Count 2
Qualification Status Not Qualified
Number of Elements 1
Element Configuration Single
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Schottky
Current - Reverse Leakage @ Vr 100μA @ 40V
Voltage - Forward (Vf) (Max) @ If 550mV @ 1A
Forward Current 1A
Operating Temperature - Junction -40°C~125°C
Output Current-Max 1A
Forward Voltage 550mV
Max Reverse Voltage (DC) 40V
Average Rectified Current 1A
Peak Reverse Current 100μA
Max Repetitive Reverse Voltage (Vrrm) 40V
Peak Non-Repetitive Surge Current 70A
Max Forward Surge Current (Ifsm) 70A
Dimensions
Height 1.25mm
Length 4.6mm
Width 2.3mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
