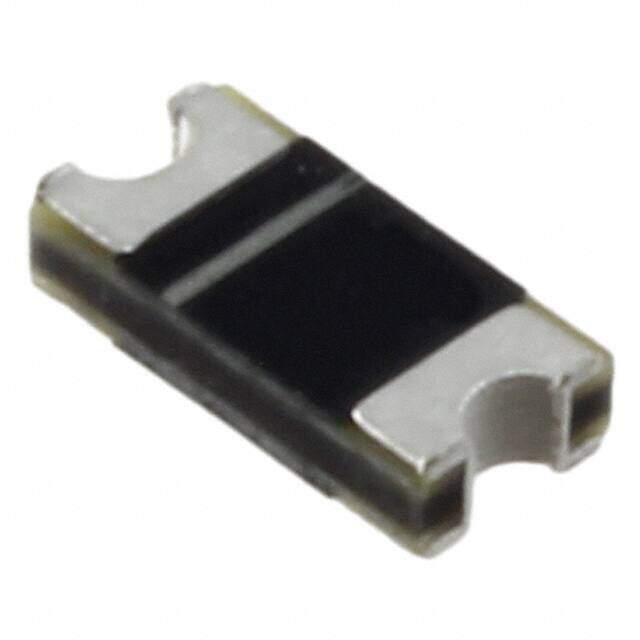

SD2010S040S3R0
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, No Lead
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 40V 3A SMA
PDF
/
Buying Options
Total Price: USD $0.3
Unit Price: USD $0.2992
≥1 USD $0.2992
≥10 USD $0.23056
≥100 USD $0.138336
≥500 USD $0.128093
≥1000 USD $0.0902
Inventory: 137279
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Number of Pins 2
Diode Element Material SILICON
Technical
Packaging Digi-Reel?
Published 2013
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Additional Feature LOW POWER LOSS
Terminal Position DUAL
Base Part Number SD2010S040S3R0
Number of Elements 1
Element Configuration Single
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Schottky
Current - Reverse Leakage @ Vr 200μA @ 40V
Voltage - Forward (Vf) (Max) @ If 500mV @ 3A
Forward Current 3A
Max Reverse Leakage Current 200μA
Operating Temperature - Junction -55°C~125°C
Max Surge Current 80A
Output Current-Max 3A
Application EFFICIENCY
Current - Average Rectified (Io) 3A DC
Forward Voltage 500mV
Max Reverse Voltage (DC) 40V
Average Rectified Current 3A
Number of Phases 1
Peak Reverse Current 200nA
Max Repetitive Reverse Voltage (Vrrm) 40V
Peak Non-Repetitive Surge Current 80A
Max Forward Surge Current (Ifsm) 80A
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
