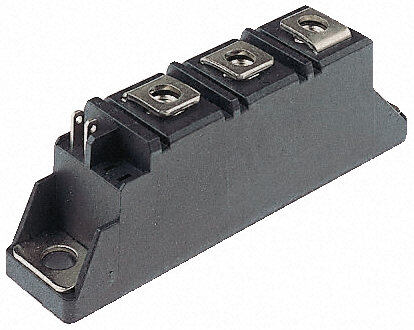

VS-VSKJ71/10
RoHS
RoHS compliant
RoHS compliantPackage ADD-A-PAK (3)
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
SCR Modules 1000 Volt 75 Amp 1570 Amp IFSM
PDF
/
Buying Options
Total Price: USD $34.28
Unit Price: USD $34.276
≥1 USD $34.276
≥10 USD $30.45856
≥100 USD $26.639976
Inventory: 61
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Chassis Mount, Panel, Screw
Mounting Type Chassis Mount
Package / Case ADD-A-PAK (3)
Number of Pins 3
Diode Element Material SILICON
Technical
Packaging Bulk
Published 2009
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Additional Feature UL APPROVED
Terminal Position UPPER
Terminal Form UNSPECIFIED
Current Rating 80A
Number of Elements 2
Element Configuration Common Anode
Speed Standard Recovery >500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 10mA @ 1000V
Forward Current 80A
Operating Temperature - Junction -40°C~150°C
Application HIGH VOLTAGE
Circuit Type Diodes
Voltage - DC Reverse (Vr) (Max) 1000V
Forward Voltage 1.6V
Max Reverse Voltage (DC) 1kV
Average Rectified Current 40A
Number of Phases 1
Peak Reverse Current 10mA
Max Repetitive Reverse Voltage (Vrrm) 1kV
JEDEC-95 Code TO-240AA
RMS Current (Irms) 126A
Peak Non-Repetitive Surge Current 1.57kA
Diode Configuration 1 Pair Common Anode
Max Forward Surge Current (Ifsm) 1.57kA
Dimensions
Height 35mm
Length 92mm
Width 21mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
