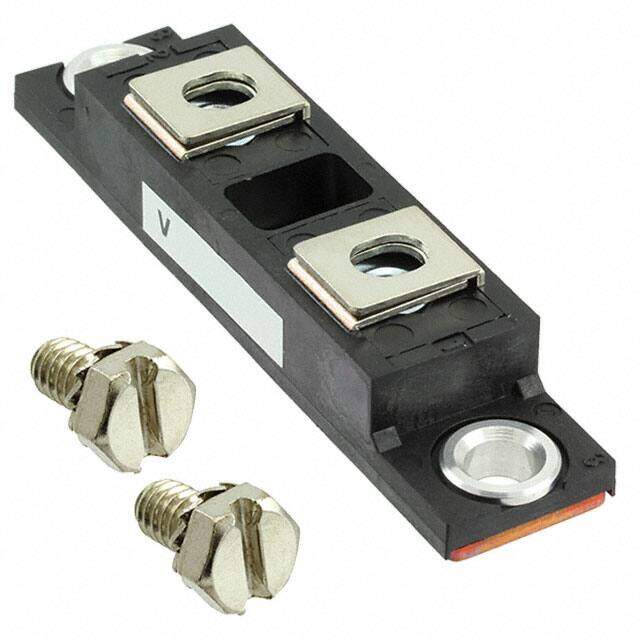

VS-HFA320NJ40CPBF
RoHS
RoHS compliant
RoHS compliantPackage TO-244AB
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
Diode Switching 400V 321A 3-Pin TO-244
PDF
/
Buying Options
Total Price: USD $42.47
Unit Price: USD $42.470374
≥1 USD $42.470374
≥10 USD $40.066395
≥100 USD $37.798483
≥500 USD $35.658946
≥1000 USD $33.640517
Inventory: 9056
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Chassis Mount, Panel, Screw
Mounting Type Chassis Mount
Package / Case TO-244AB
Number of Pins 3
Diode Element Material SILICON
Technical
Packaging Bulk
Published 2011
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 150°C
Min Operating Temperature -55°C
Additional Feature PD-CASE, UL APPROVED
HTS Code 8541.10.00.80
Terminal Position UPPER
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PUFM-X2
Number of Elements 2
Power Dissipation-Max 625W
Element Configuration Common Cathode
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 3mA @ 400V
Voltage - Forward (Vf) (Max) @ If 1.54V @ 320A
Forward Current 321A
Max Surge Current 1.2kA
Output Current-Max 210A
Application ULTRA FAST SOFT RECOVERY
Current - Average Rectified (Io) 420A
Forward Voltage 1.55V
Number of Phases 1
Reverse Recovery Time 140 ns
Peak Reverse Current 12μA
Max Repetitive Reverse Voltage (Vrrm) 400V
Peak Non-Repetitive Surge Current 1.2kA
Reverse Voltage 400V
Diode Configuration 1 Pair Common Cathode
Max Forward Surge Current (Ifsm) 1.2kA
Recovery Time 140 ns
Dimensions
Height 17.5mm
Length 93mm
Width 21mm
Compliance
RoHS Status ROHS3 Compliant
