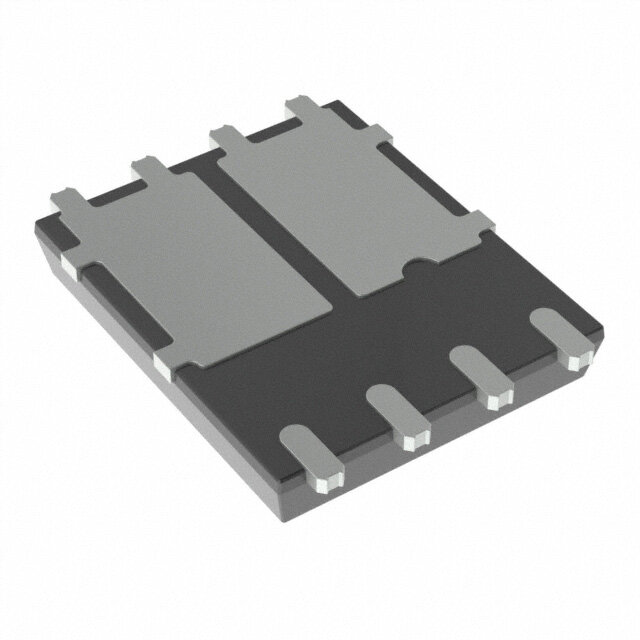

STTH8L02DDJFY-TR
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerVDFN
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
DIODE ARRAY GP 200V 4A PWRFLAT
PDF
/
Buying Options
Total Price: USD $9.52
Unit Price: USD $9.5152
≥1 USD $9.5152
≥10 USD $7.8071
≥100 USD $7.5639
≥500 USD $7.31975
≥1000 USD $7.0756
Inventory: 3205
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Reverse Current-Max 3μA
Diode Configuration 2 Independent
Non-rep Pk Forward Current-Max 75A
Rep Pk Reverse Voltage-Max 200V
Reverse Recovery Time 40ns
Number of Phases 1
Current - Average Rectified (Io) 4A
Voltage - DC Reverse (Vr) (Max) 200V
Application ULTRA FAST RECOVERY
Operating Temperature - Junction -40°C~175°C
Case Connection CATHODE
Voltage - Forward (Vf) (Max) @ If 1.1V @ 8A
Current - Reverse Leakage @ Vr 3μA @ 200V
Diode Type Standard
Speed Fast Recovery =< 500ns, > 200mA (Io)
Number of Elements 2
Operating Temperature (Max) 175°C
JESD-30 Code R-PDSO-F6
Base Part Number STTH8L02
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form FLAT
Terminal Position DUAL
Additional Feature FREE WHEELING DIODE
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series Automotive, AEC-Q101, ECOPACK?2
Packaging Tape & Reel (TR)
Physical
Diode Element Material SILICON
Surface Mount YES
Package / Case 8-PowerVDFN
Mounting Type Surface Mount, Wettable Flank
