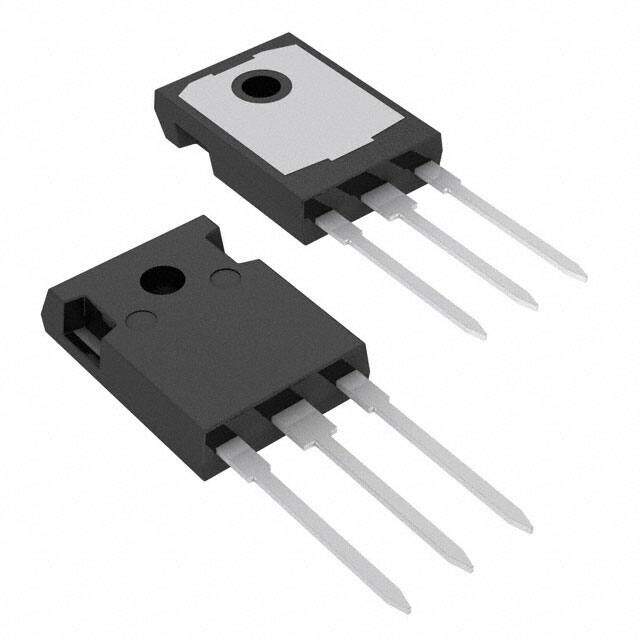

STTH60AC06CWL image
Favorite
STTH60AC06CWL image
Favorite

STTH60AC06CWL

STMicroelectronics
RoHS
RoHS RoHS compliant
Package TO-247-3
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description STMICROELECTRONICS STTH60AC06CWL Standard Recovery Diode, Dual Common Cathode, 600 V, 60 A, 2 V, 280 A
PDF
/
Buying Options
Total Price: USD $3.2
Unit Price: USD $3.2032
≥1 USD $3.2032
≥10 USD $2.53557
≥100 USD $2.17338
≥500 USD $1.93189
≥1000 USD $1.65418
≥3000 USD $1.557591
Inventory: 640
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Technical

Max Forward Surge Current (Ifsm) 280A
Diode Configuration 1 Pair Common Cathode
Max Repetitive Reverse Voltage (Vrrm) 600V
Reverse Recovery Time 70 ns
Average Rectified Current 30A
Max Reverse Voltage (DC) 600V
Forward Voltage 2V
Operating Temperature - Junction 175°C Max
Forward Current 60A
Voltage - Forward (Vf) (Max) @ If 1.75V @ 30A
Current - Reverse Leakage @ Vr 10μA @ 600V
Diode Type Standard
Speed Fast Recovery =< 500ns, > 200mA (Io)
Element Configuration Common Cathode
Base Part Number STTH60
Max Operating Temperature 175°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tube

Physical

Number of Pins 3
Package / Case TO-247-3
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 11 Weeks
