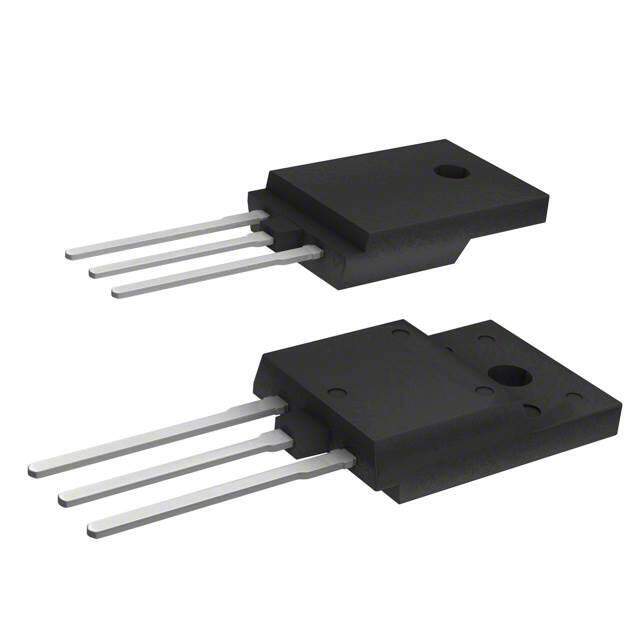

STTH60AC06CPF
RoHS
RoHS compliant
RoHS compliantPackage TO-3P-3 Full Pack
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
Rectifiers Ultrafast Recovery 6000V 12pF Diode
PDF
/
Buying Options
Total Price: USD $55.3
Unit Price: USD $55.29855
≥1 USD $55.29855
≥10 USD $45.3739
≥100 USD $43.95555
≥500 USD $42.53815
≥1000 USD $41.1198
Inventory: 1127
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Recovery Time 50 ns
Max Forward Surge Current (Ifsm) 280A
Diode Configuration 1 Pair Common Cathode
Reverse Voltage 600V
Max Repetitive Reverse Voltage (Vrrm) 600V
Peak Reverse Current 40μA
Reverse Recovery Time 40 ns
Number of Phases 1
Average Rectified Current 30A
Max Reverse Voltage (DC) 600V
Forward Voltage 2V
Application HIGH VOLTAGE ULTRA FAST RECOVERY
Max Surge Current 280A
Operating Temperature - Junction 175°C Max
Forward Current 60A
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.75V @ 30A
Current - Reverse Leakage @ Vr 10μA @ 600V
Diode Type Standard
Speed Fast Recovery =< 500ns, > 200mA (Io)
Element Configuration Common Cathode
Number of Elements 2
Base Part Number STTH60
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Additional Feature FREE WHEELING DIODE
Max Operating Temperature 175°C
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tube
Physical
Diode Element Material SILICON
Number of Pins 3
Package / Case TO-3P-3 Full Pack
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 13 Weeks
