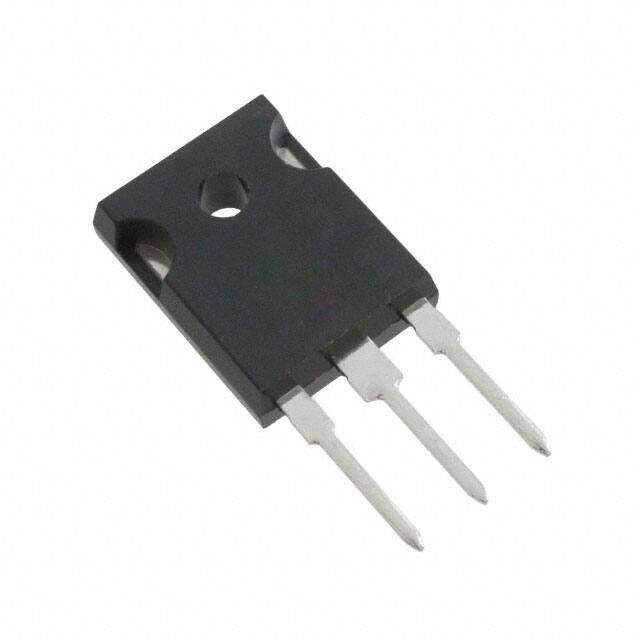

STTH20W02CW
RoHS
RoHS compliant
RoHS compliantPackage TO-247-3
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
Rectifiers Turbo 2 Ultrafast 2 x 10A 200V 20ns
PDF
/
Buying Options
Total Price: USD $1.93
Unit Price: USD $1.9272
≥1 USD $1.9272
≥10 USD $1.54821
≥100 USD $1.27387
≥500 USD $1.077894
≥1000 USD $0.914575
Inventory: 1188
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-247-3
Number of Pins 3
Diode Element Material SILICON
Technical
Packaging Tube
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Max Operating Temperature 175°C
Min Operating Temperature -65°C
Subcategory Rectifier Diodes
Terminal Position SINGLE
Base Part Number STTH2
Number of Elements 2
Element Configuration Common Cathode
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 5μA @ 200V
Voltage - Forward (Vf) (Max) @ If 1.2V @ 10A
Forward Current 20A
Operating Temperature - Junction 175°C Max
Application HIGH VOLTAGE ULTRA FAST RECOVERY
Forward Voltage 1.4V
Max Reverse Voltage (DC) 200V
Average Rectified Current 10A
Number of Phases 1
Reverse Recovery Time 20ns
Peak Reverse Current 100μA
Max Repetitive Reverse Voltage (Vrrm) 200V
Peak Non-Repetitive Surge Current 80A
Reverse Voltage 200V
Diode Configuration 1 Pair Common Cathode
Max Forward Surge Current (Ifsm) 80A
Recovery Time 110 ns
Dimensions
Height 20.15mm
Length 15.75mm
Width 5.15mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
