STTH2003CG-TR
RoHS
RoHS compliant

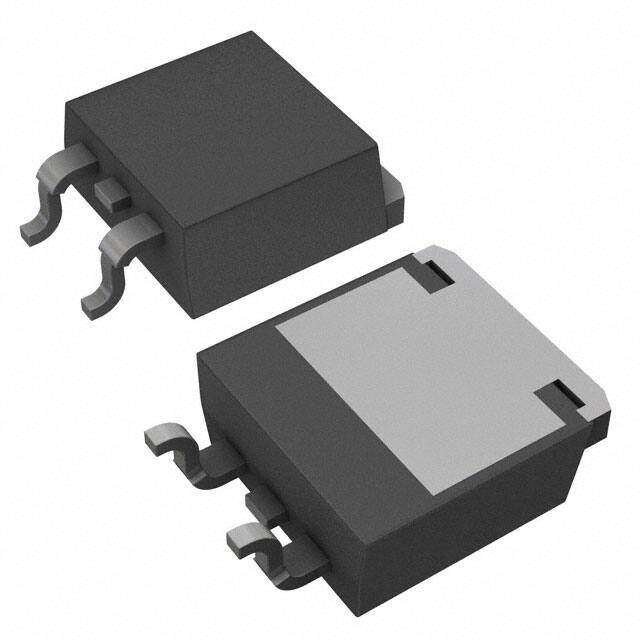

RoHS compliantPackage TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
DIODE ARRAY GP 300V 10A D2PAK
PDF
/
Buying Options
Total Price: USD $1.69
Unit Price: USD $1.6896
≥1 USD $1.6896
≥10 USD $1.40448
≥100 USD $1.117864
≥500 USD $0.945912
Inventory: 11446
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Recovery Time 35 ns
Diode Configuration 1 Pair Common Cathode
Reverse Voltage 300V
Peak Non-Repetitive Surge Current 110A
Max Repetitive Reverse Voltage (Vrrm) 300V
Peak Reverse Current 20μA
Reverse Recovery Time 35 ns
Number of Phases 1
Average Rectified Current 10A
Max Reverse Voltage (DC) 300V
Forward Voltage 1.25V
Application ULTRA FAST SOFT RECOVERY
Max Surge Current 110A
Operating Temperature - Junction 175°C Max
Forward Current 20A
Voltage - Forward (Vf) (Max) @ If 1.25V @ 10A
Current - Reverse Leakage @ Vr 20μA @ 300V
Diode Type Standard
Speed Fast Recovery =< 500ns, > 200mA (Io)
Element Configuration Common Cathode
Number of Elements 2
JESD-30 Code R-PSSO-G2
Pin Count 3
Base Part Number STTH2
Time@Peak Reflow Temperature-Max (s) 30
Current Rating 20A
Peak Reflow Temperature (Cel) 245
Terminal Form GULL WING
Terminal Position SINGLE
Voltage - Rated DC 300V
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Min Operating Temperature -65°C
Max Operating Temperature 175°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Packaging Tape & Reel (TR)
Physical
Diode Element Material SILICON
Number of Pins 3
Package / Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 11 Weeks
