STPSC20H065CWY
RoHS
RoHS compliant

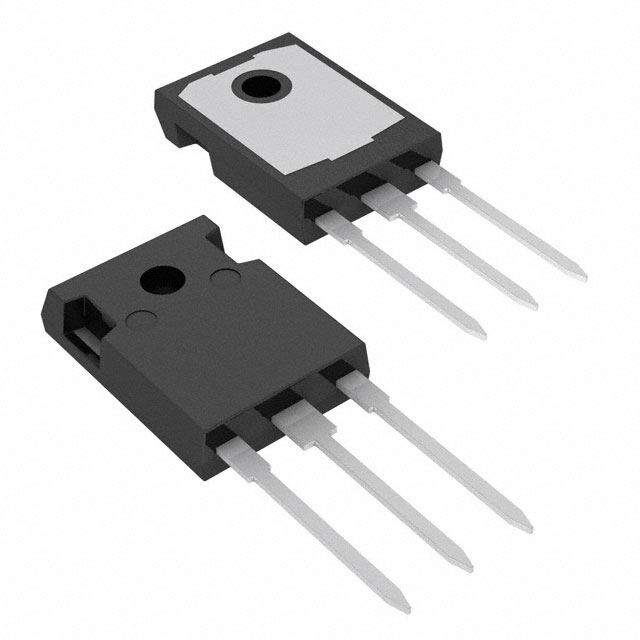

RoHS compliantPackage TO-247-3
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
STMICROELECTRONICS STPSC20H065CWY Silicon Carbide Schottky Diode, SIC, 650V Series, Dual Common Cathode, 650 V, 20 A, 28.5 nC, TO-247
PDF
/
Buying Options
Total Price: USD $5.89
Unit Price: USD $5.8872
≥1 USD $5.8872
≥10 USD $4.69979
≥100 USD $4.20501
≥500 USD $3.710291
≥1000 USD $3.339266
≥3000 USD $3.129016
Inventory: 605
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 months ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-247-3
Number of Pins 3
Technical
Packaging Tube
Series Automotive, AEC-Q101, ECOPACK?2
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number STPSC20
Operating Temperature (Max) 175°C
Number of Elements 2
Element Configuration Common Cathode
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Silicon Carbide Schottky
Current - Reverse Leakage @ Vr 100μA @ 650V
Voltage - Forward (Vf) (Max) @ If 1.75V @ 10A
Forward Current 20A
Operating Temperature - Junction -40°C~175°C
Application POWER
Max Reverse Voltage (DC) 650V
Average Rectified Current 10A
Number of Phases 1
Max Repetitive Reverse Voltage (Vrrm) 650V
Diode Configuration 1 Pair Common Cathode
Reverse Current-Max 100μA
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
