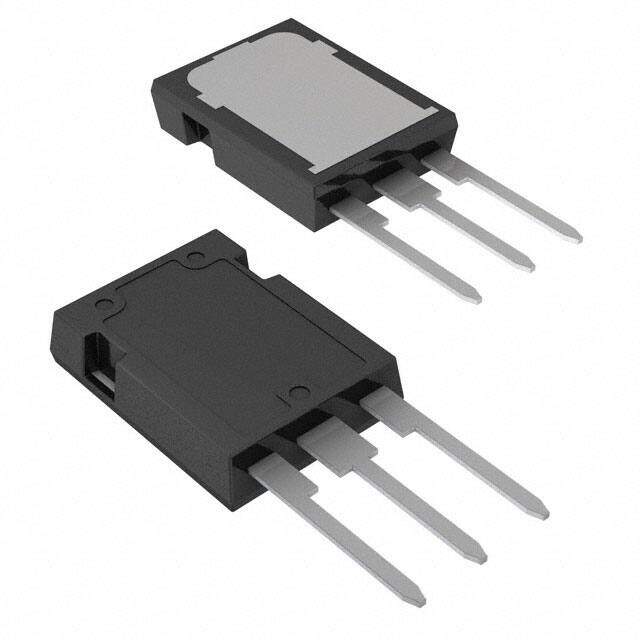

STPS80H100CY
RoHS
RoHS compliant
RoHS compliantPackage TO-247-3
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
DIODE ARRAY SCHOTTKY 100V MAX247
PDF
/
Buying Options
Total Price: USD $3.87
Unit Price: USD $3.87125
≥1 USD $3.87125
≥10 USD $3.1768
≥100 USD $3.07705
≥500 USD $2.97825
≥1000 USD $2.8785
Inventory: 97
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 5.3mm
Length 15.9mm
Height 20.3mm
Technical
Max Forward Surge Current (Ifsm) 400A
Diode Configuration 1 Pair Common Cathode
Peak Non-Repetitive Surge Current 400A
Max Repetitive Reverse Voltage (Vrrm) 100V
Peak Reverse Current 20μA
Number of Phases 1
Average Rectified Current 40A
Max Reverse Voltage (DC) 100V
Forward Voltage 940mV
Application HIGH VOLTAGE POWER
Max Surge Current 400A
Operating Temperature - Junction 175°C Max
Max Reverse Leakage Current 20μA
Forward Current 40A
Voltage - Forward (Vf) (Max) @ If 800mV @ 40A
Current - Reverse Leakage @ Vr 20μA @ 100V
Diode Type Schottky
Speed Fast Recovery =< 500ns, > 200mA (Io)
Element Configuration Common Cathode
Number of Elements 2
JESD-30 Code R-PSIP-T3
Pin Count 3
Base Part Number STPS80
Current Rating 80A
Terminal Position SINGLE
Voltage - Rated DC 100V
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Additional Feature LOW LEAKAGE CURRENT
Min Operating Temperature -65°C
Max Operating Temperature 175°C
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Series Q Automotive
Packaging Tube
Physical
Diode Element Material SILICON
Number of Pins 247
Package / Case TO-247-3
Mounting Type Through Hole
Mount Radial, Through Hole
