STPS41L30CG-TR
RoHS
RoHS compliant

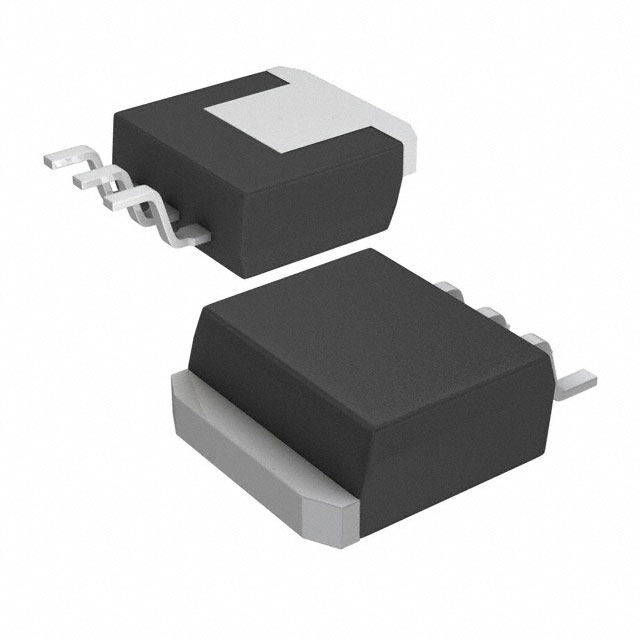

RoHS compliantPackage TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
DIODE ARRAY SCHOTTKY 30V D2PAK
PDF
/
Buying Options
Total Price: USD $1.99
Unit Price: USD $1.9888
≥1 USD $1.9888
≥10 USD $1.65528
≥100 USD $1.31736
≥500 USD $1.114696
Inventory: 1247
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Technical
Max Forward Surge Current (Ifsm) 220A
Diode Configuration 1 Pair Common Cathode
Peak Non-Repetitive Surge Current 220A
Max Repetitive Reverse Voltage (Vrrm) 30V
Peak Reverse Current 1.5mA
Number of Phases 1
Average Rectified Current 20A
Max Reverse Voltage (DC) 30V
Forward Voltage 570mV
Application POWER
Max Surge Current 220A
Operating Temperature - Junction 150°C Max
Max Reverse Leakage Current 1.5mA
Forward Current 40A
Voltage - Forward (Vf) (Max) @ If 480mV @ 20A
Current - Reverse Leakage @ Vr 1.5mA @ 30V
Diode Type Schottky
Speed Fast Recovery =< 500ns, > 200mA (Io)
Element Configuration Common Cathode
Number of Elements 2
JESD-30 Code R-PSSO-G2
Pin Count 3
Base Part Number STPS41
Time@Peak Reflow Temperature-Max (s) 40
Current Rating 40A
Peak Reflow Temperature (Cel) 245
Terminal Form GULL WING
Terminal Position SINGLE
Voltage - Rated DC 30V
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Additional Feature FREE WHEELING DIODE
Min Operating Temperature -65°C
Max Operating Temperature 150°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Packaging Tape & Reel (TR)
Physical
Diode Element Material SILICON
Number of Pins 3
Package / Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 11 Weeks
