STPS40170CG
RoHS
/

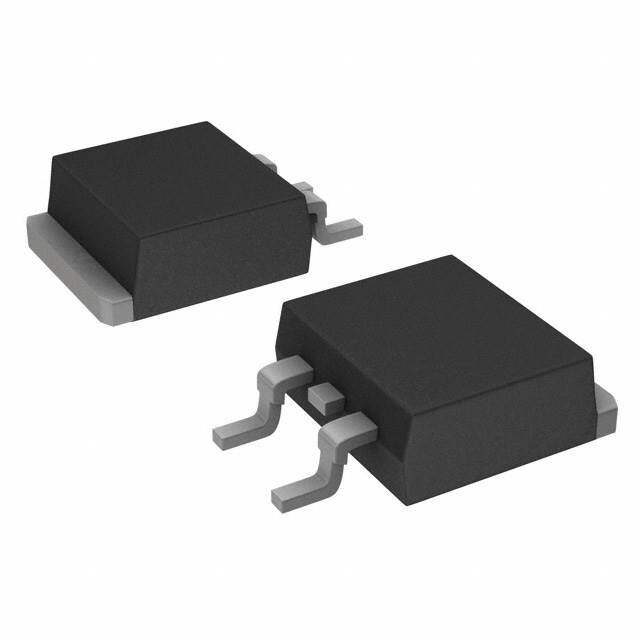

Package TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
DIODE ARRAY SCHOTTKY 170V D2PAK
PDF
/
Buying Options
Total Price: USD $1.33
Unit Price: USD $1.33285
≥1 USD $1.33285
≥10 USD $1.0944
≥100 USD $1.0602
≥500 USD $1.026
≥1000 USD $0.9918
Inventory: 1183
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Technical
Diode Configuration 1 Pair Common Cathode
Number of Phases 1
Average Rectified Current 20A
Max Reverse Voltage (DC) 170V
Application HIGH VOLTAGE POWER
Max Surge Current 250A
Operating Temperature - Junction 175°C Max
Max Reverse Leakage Current 30μA
Voltage - Forward (Vf) (Max) @ If 920mV @ 20A
Current - Reverse Leakage @ Vr 30μA @ 170V
Diode Type Schottky
Speed Fast Recovery =< 500ns, > 200mA (Io)
Element Configuration Common Cathode
Number of Elements 2
Qualification Status Not Qualified
Pin Count 3
Base Part Number STPS401
Time@Peak Reflow Temperature-Max (s) 30
Current Rating 40A
Reach Compliance Code not_compliant
Peak Reflow Temperature (Cel) 245
Terminal Form GULL WING
Terminal Position SINGLE
Voltage - Rated DC 170V
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Additional Feature LOW LEAKAGE CURRENT
Min Operating Temperature -65°C
Max Operating Temperature 175°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Packaging Tube
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Mounting Type Surface Mount
Mount Surface Mount
Alternative Model
