STPS30L30CR
RoHS
RoHS compliant

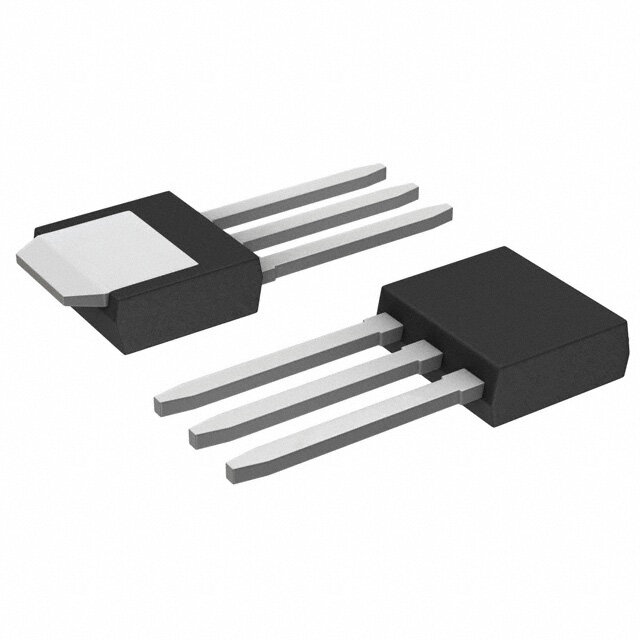

RoHS compliantPackage TO-262-3 Long Leads, I2Pak, TO-262AA
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
DIODE ARRAY SCHOTTKY 30V I2PAK
PDF
/
Buying Options
Total Price: USD $1.35
Unit Price: USD $1.3464
≥1 USD $1.3464
≥10 USD $1.08504
≥100 USD $0.89276
≥500 USD $0.75541
Inventory: 902
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Diode Configuration 1 Pair Common Cathode
Peak Non-Repetitive Surge Current 220A
Max Repetitive Reverse Voltage (Vrrm) 30V
Peak Reverse Current 1.5mA
Number of Phases 1
Average Rectified Current 15A
Max Reverse Voltage (DC) 30V
Forward Voltage 570mV
Application POWER
Max Surge Current 220A
Operating Temperature - Junction 150°C Max
Max Reverse Leakage Current 1.5mA
Forward Current 30A
Voltage - Forward (Vf) (Max) @ If 460mV @ 15A
Current - Reverse Leakage @ Vr 1.5mA @ 30V
Diode Type Schottky
Speed Fast Recovery =< 500ns, > 200mA (Io)
Element Configuration Common Cathode
Number of Elements 2
Pin Count 3
Base Part Number STPS30L30
Peak Reflow Temperature (Cel) 245
Terminal Position SINGLE
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Additional Feature FREE WHEELING DIODE
Min Operating Temperature -65°C
Max Operating Temperature 150°C
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Packaging Tube
Physical
Diode Element Material SILICON
Number of Pins 3
Package / Case TO-262-3 Long Leads, I2Pak, TO-262AA
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 11 Weeks
