STPR1020CB-TR
RoHS
RoHS compliant
RoHS compliantPackage TO-252-3, DPak (2 Leads + Tab), SC-63
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
DIODE ARRAY GP 200V 5A DPAK
PDF
/
Inventory: 5415
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Number of Pins 3
Diode Element Material SILICON
Technical
Packaging Tape & Reel (TR)
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 150°C
Min Operating Temperature -65°C
Additional Feature FREE WHEELING DIODE
HTS Code 8541.10.00.80
Subcategory Rectifier Diodes
Voltage - Rated DC 200V
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Current Rating 5A
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number STPR1020
Pin Count 3
JESD-30 Code R-PSSO-G2
Number of Elements 2
Element Configuration Common Cathode
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 50μA @ 200V
Voltage - Forward (Vf) (Max) @ If 990mV @ 5A
Forward Current 10A
Operating Temperature - Junction -65°C~150°C
Max Surge Current 50A
Output Current-Max 5A
Application ULTRA FAST RECOVERY
Max Reverse Voltage (DC) 200V
Average Rectified Current 5A
Number of Phases 1
Reverse Recovery Time 30 ns
Peak Reverse Current 50μA
Max Repetitive Reverse Voltage (Vrrm) 200V
Peak Non-Repetitive Surge Current 50A
Reverse Voltage 200V
Diode Configuration 1 Pair Common Cathode
Recovery Time 30 ns
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free

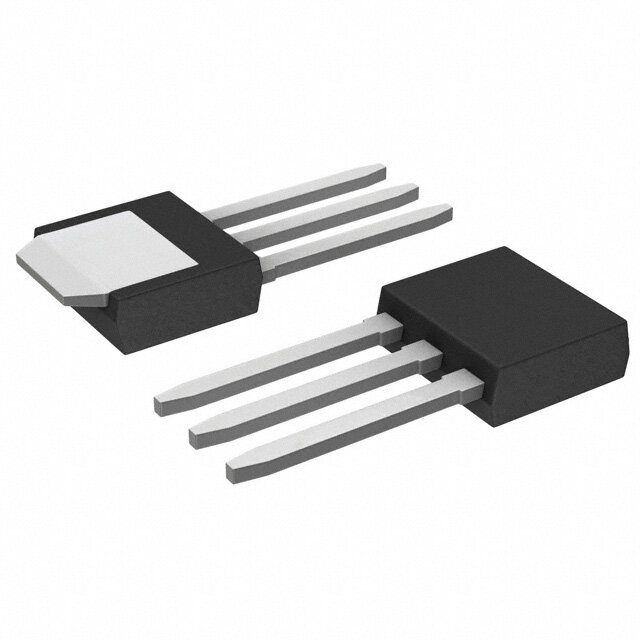

Alternative Model
