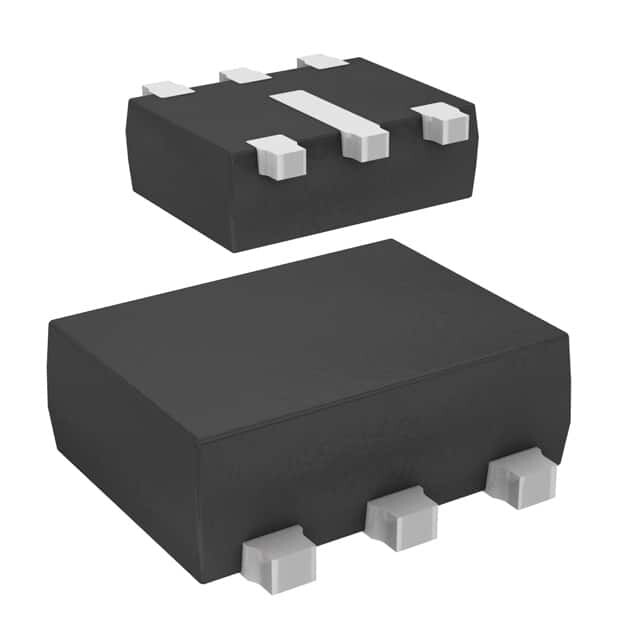

BAS69-09P6FILM
RoHS
RoHS compliant
RoHS compliantPackage SOT-563, SOT-666
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
DIODE ARRAY SCHOTTKY 15V SOT666
PDF
/
Inventory: 5320
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
Diode Configuration 2 Independent
Max Repetitive Reverse Voltage (Vrrm) 15V
Peak Reverse Current 100μA
Average Rectified Current 10mA
Max Reverse Voltage (DC) 15V
Forward Voltage 500mV
Current - Average Rectified (Io) 10mA DC
Output Current-Max 0.01A
Max Surge Current 2A
Operating Temperature - Junction 150°C Max
Max Reverse Leakage Current 230nA
Voltage - Forward (Vf) (Max) @ If 570mV @ 10mA
Current - Reverse Leakage @ Vr 230nA @ 15V
Diode Type Schottky
Speed Small Signal =< 200mA (Io), Any Speed
Number of Elements 2
Operating Temperature (Max) 150°C
Qualification Status Not Qualified
Pin Count 6
Base Part Number BAS69
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Current Rating 10mA
Reach Compliance Code unknown
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form FLAT
Terminal Position DUAL
Voltage - Rated DC 15V
Subcategory Other Diodes
HTS Code 8541.10.00.70
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Tape & Reel (TR)
Physical
Diode Element Material SILICON
Number of Pins 6
Package / Case SOT-563, SOT-666
Mounting Type Surface Mount
Mount Surface Mount
Alternative Model
