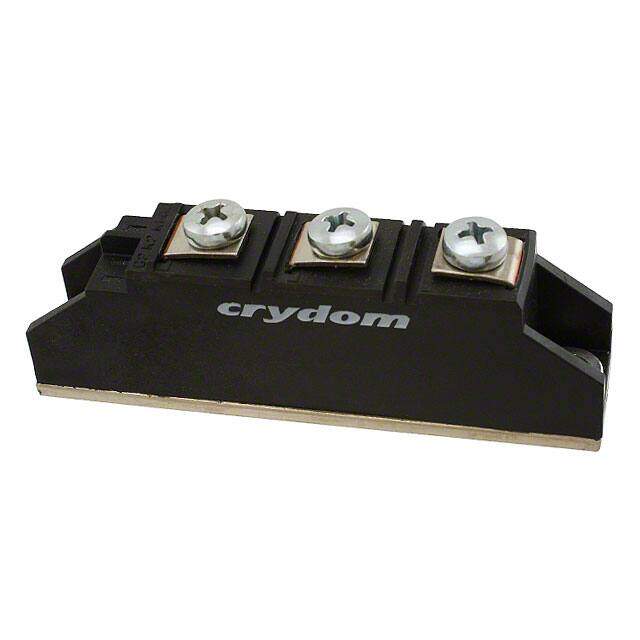

F1827CCD400
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
Discrete Semiconductor Modules MOD DIODE 25A 120VAC
PDF
/
Inventory: 3751
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
Diode Configuration 1 Pair Common Cathode
Peak Non-Repetitive Surge Current 400A
Max Repetitive Reverse Voltage (Vrrm) 400V
Reverse Recovery Time 35 ns
Average Rectified Current 25A
Max Reverse Voltage (DC) 400V
Forward Voltage 1.55V
Current - Average Rectified (Io) 25A DC
Operating Temperature - Junction -40°C~125°C
Forward Current 25A
Voltage - Forward (Vf) (Max) @ If 1.55V @ 75A
Diode Type Standard
Speed Standard Recovery >500ns, > 200mA (Io)
Element Configuration Common Cathode
Current Rating 25A
Voltage - Rated DC 400V
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Published 2009
Packaging Bulk
Physical
Number of Pins 3
Package / Case Module
Mounting Type Chassis Mount
Mount Chassis Mount, Screw, Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
