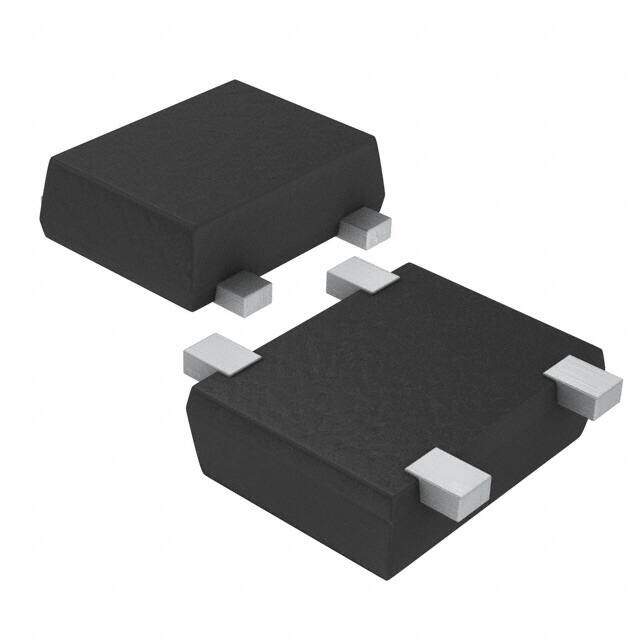

RB851YT2R
RoHS
RoHS compliant
RoHS compliantPackage SC-75-4, SOT-543
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
DIODE ARRAY SCHOTTKY 3V EMD4
PDF
/
Buying Options
Total Price: USD $0.21
Unit Price: USD $0.2147
≥1 USD $0.2147
≥10 USD $0.1767
≥100 USD $0.171
≥500 USD $0.1653
≥1000 USD $0.16055
Inventory: 1526
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 558.8μm
Width 304.8μm
Length 990.6μm
Technical
Reverse Test Voltage 1V
Diode Configuration 2 Independent
Max Repetitive Reverse Voltage (Vrrm) 3V
Peak Reverse Current 700nA
Average Rectified Current 30mA
Max Reverse Voltage (DC) 3V
Forward Voltage 460mV
Current - Average Rectified (Io) 30mA DC
Output Current-Max 0.03A
Operating Temperature - Junction 125°C Max
Forward Current 30mA
Voltage - Forward (Vf) (Max) @ If 460mV @ 1mA
Current - Reverse Leakage @ Vr 700nA @ 1V
Diode Type Schottky
Speed Small Signal =< 200mA (Io), Any Speed
Number of Elements 2
Case Code (Imperial) 0402
Case Code (Metric) 1005
Base Part Number RB851Y
Terminal Form FLAT
Terminal Position DUAL
Subcategory Other Diodes
Capacitance 330pF
Additional Feature HIGH RELIABILITY
Voltage - Rated 50V
Min Operating Temperature -40°C
Max Operating Temperature 125°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
Tolerance 10%
Published 2007
Packaging Tape & Reel (TR)
Physical
Diode Element Material SILICON
Number of Pins 4
Package / Case SC-75-4, SOT-543
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
