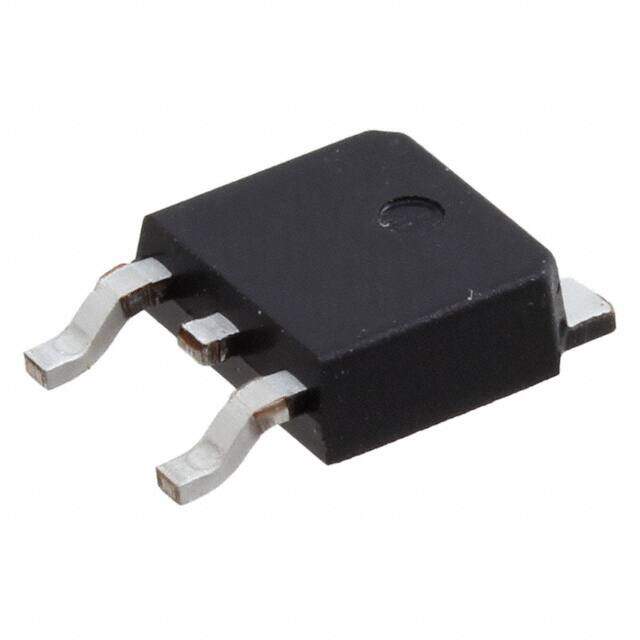

LQA10N200C
RoHS
RoHS compliant
RoHS compliantPackage TO-252-3, DPak (2 Leads + Tab), SC-63
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
DIODE ARRAY GP 200V 5A TO252
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.616
≥1 USD $0.616
≥10 USD $0.506704
≥100 USD $0.4312
Inventory: 1251
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 84 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Number of Pins 3
Diode Element Material SILICON
Technical
Packaging Cut Tape (CT)
Published 2013
Series Qspeed?
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 150°C
Min Operating Temperature -55°C
Additional Feature FREE WHEELING DIODE, PD-CASE, SOFT FACTOR IS 0.44
HTS Code 8541.10.00.80
Technology SCHOTTKY
Terminal Position SINGLE
Terminal Form GULL WING
JESD-30 Code R-PSSO-G2
Number of Elements 2
Element Configuration Common Cathode
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 250μA @ 200V
Power Dissipation 27.7W
Voltage - Forward (Vf) (Max) @ If 1.1V @ 5A
Forward Current 10A
Operating Temperature - Junction -55°C~150°C
Max Surge Current 60A
Output Current-Max 5A
Application EFFICIENCY
Max Reverse Voltage (DC) 200V
Average Rectified Current 5A
Number of Phases 1
Reverse Recovery Time 13.9 ns
Peak Reverse Current 250μA
Max Repetitive Reverse Voltage (Vrrm) 200V
Peak Non-Repetitive Surge Current 350A
Reverse Voltage 200V
Diode Configuration 1 Pair Common Cathode
Recovery Time 13.9 ns
Natural Thermal Resistance 2.3 °C/W
