2950132
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description

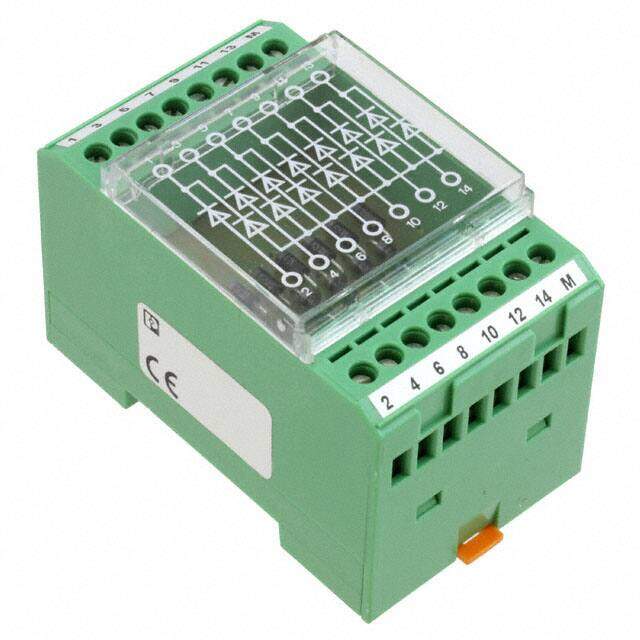

Terminal Block Interface Modules EMG45-DIO14M/LP LAMP TESTING MODULE
PDF
/
Buying Options
Total Price: USD $129.81
Unit Price: USD $129.8088
≥1 USD $129.8088
≥10 USD $122.5972
Inventory: 30
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 45mm
Length 55mm
Height 75mm
Technical
Diode Configuration 7 Pair Common Cathode
Average Rectified Current 700mA
Max Reverse Voltage (DC) 1.3kV
Current - Average Rectified (Io) 700mA
Voltage - DC Reverse (Vr) (Max) 1300V
Operating Temperature - Junction -20°C~50°C
Wire/Cable Gauge 12 AWG
Current - Reverse Leakage @ Vr 5μA @ 1300V
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Diode Type Standard
Speed Standard Recovery >500ns, > 200mA (Io)
Element Configuration Common Cathode
Voltage - Rated 250V
Color Green
Min Operating Temperature -20°C
Max Operating Temperature 50°C
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Published 2011
Packaging Bulk
Physical
Weight 87.399992g
Supplier Device Package Module
Package / Case Module
Mounting Type DIN Rail/Channel
Mount DIN Rail
Supply Chain
Factory Lead Time 4 Weeks
