2950116
RoHS
RoHS compliant
RoHS compliantPackage Housed Axial
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description

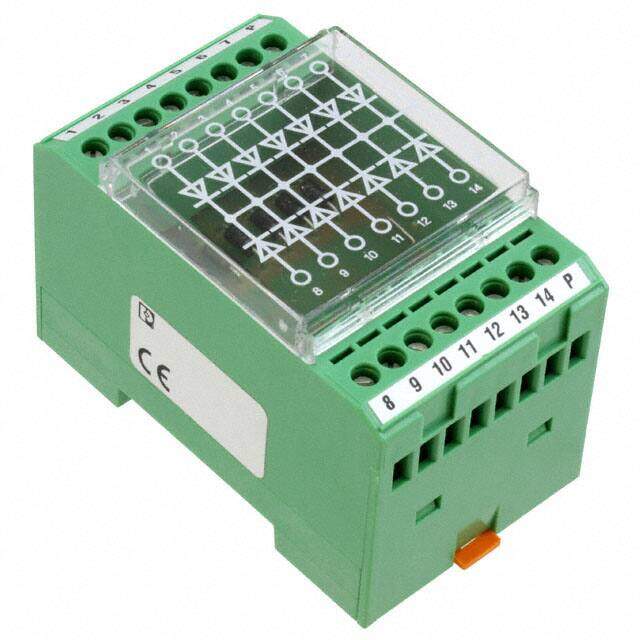

Terminal Block Interface Modules EMG 45-DIO14P
PDF
/
Buying Options
Total Price: USD $103.88
Unit Price: USD $103.8752
≥1 USD $103.8752
≥10 USD $95.56536
≥100 USD $88.294272
≥500 USD $81.943136
Inventory: 15
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 45mm
Length 55mm
Height 75mm
Technical
Coil Voltage (AC) 250V
Diode Configuration 14 Common Cathode
Average Rectified Current 700mA
Max Reverse Voltage (DC) 1.3kV
Current - Average Rectified (Io) 700mA
Voltage - DC Reverse (Vr) (Max) 1300V
Operating Temperature - Junction -20°C~50°C
Current - Reverse Leakage @ Vr 5μA @ 1300V
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Diode Type Standard
Speed Standard Recovery >500ns, > 200mA (Io)
Element Configuration Common Cathode
Depth 55mm
Voltage - Rated 250V
Color Green
Min Operating Temperature -20°C
Max Operating Temperature 50°C
Number of Positions 14
Connector Type Screw
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Published 2010
Packaging Bulk
Physical
Weight 90.460011g
Supplier Device Package Module
Package / Case Housed Axial
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 4 Weeks
