MURB1660CTT4G
RoHS
RoHS compliant
RoHS compliantPackage TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
DIODE ARRAY GP 600V 8A D2PAK
PDF
/
Buying Options
Total Price: USD $9.4
Unit Price: USD $9.3974
≥1 USD $9.3974
≥10 USD $7.7102
≥100 USD $7.46985
≥500 USD $7.22855
≥1000 USD $6.9882
≥800 USD $6.26525
Inventory: 23978
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 9.65mm
Length 10.29mm
Height 4.83mm
Technical
Recovery Time 60 ns
Max Forward Surge Current (Ifsm) 100A
Diode Configuration 1 Pair Common Cathode
Reverse Voltage 600V
Peak Non-Repetitive Surge Current 100A
Max Repetitive Reverse Voltage (Vrrm) 600V
Peak Reverse Current 10μA
Reverse Recovery Time 60 ns
Number of Phases 1
Average Rectified Current 8A
Max Reverse Voltage (DC) 600V
Forward Voltage 1.5V
Halogen Free Halogen Free
Application ULTRA FAST RECOVERY POWER
Output Current-Max 8A
Max Surge Current 100A
Operating Temperature - Junction -65°C~175°C
Forward Current 16A
Voltage - Forward (Vf) (Max) @ If 1.5V @ 8A
Current - Reverse Leakage @ Vr 10μA @ 600V
Diode Type Standard
Speed Fast Recovery =< 500ns, > 200mA (Io)
Element Configuration Common Cathode
Power Dissipation-Max 3W
Number of Elements 2
JESD-30 Code R-PSSO-G2
Pin Count 3
Base Part Number MURB1660CT
Time@Peak Reflow Temperature-Max (s) 40
Current Rating 8A
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position SINGLE
Voltage - Rated DC 600V
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Additional Feature FREE WHEELING DIODE
Min Operating Temperature -65°C
Max Operating Temperature 175°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series SWITCHMODE?
Published 2006
Packaging Tape & Reel (TR)
Physical
Diode Element Material SILICON
Number of Pins 3
Surface Mount YES
Package / Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Mounting Type Surface Mount
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 4 Weeks

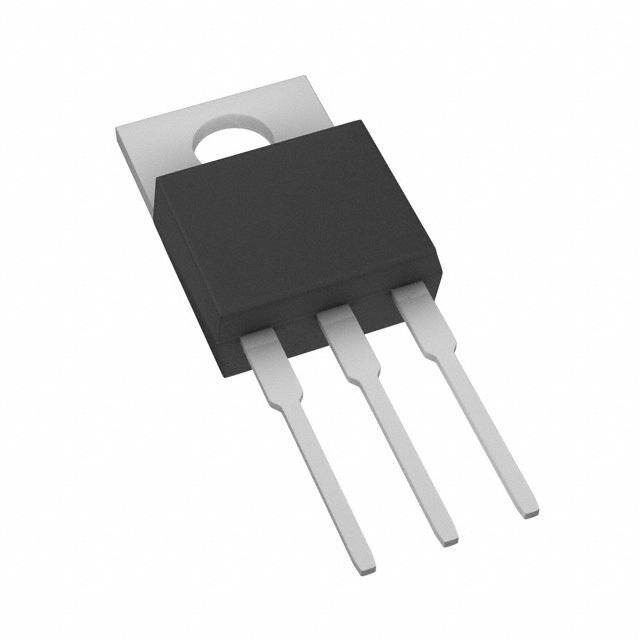

Alternative Model
