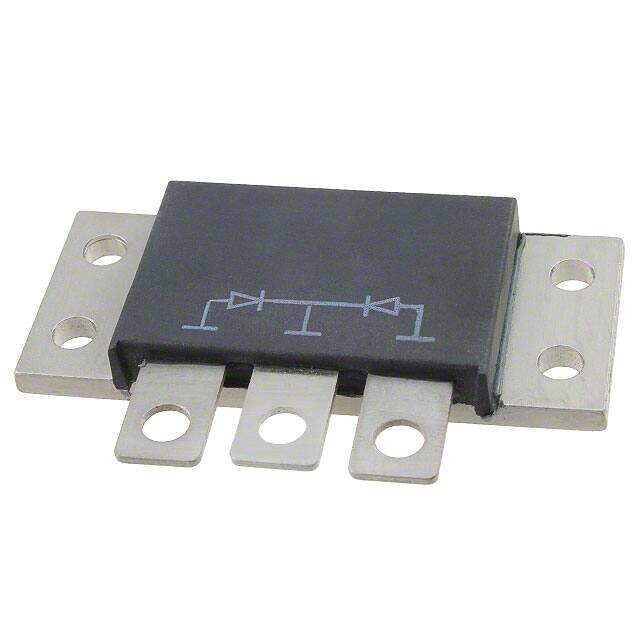

UFT14020D
RoHS
/
Package TO-249AA Isolated Base
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
DIODE MODULE 200V 70A
PDF
/
Inventory: 9316
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Screw
Mounting Type Screw Mount
Package / Case TO-249AA Isolated Base
Number of Pins 4
Diode Element Material SILICON
Technical
Packaging Bulk
Published 2009
JESD-609 Code e0
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Terminal Finish TIN LEAD
Max Operating Temperature 175°C
Min Operating Temperature -55°C
Subcategory Rectifier Diodes
Terminal Position SINGLE
Terminal Form SOLDER LUG
Pin Count 3
JESD-30 Code R-XSFM-D3
Number of Elements 2
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 25μA @ 200V
Voltage - Forward (Vf) (Max) @ If 975mV @ 70A
Forward Current 140A
Application ULTRA FAST RECOVERY
Max Reverse Voltage (DC) 200V
Average Rectified Current 70A
Number of Phases 1
Reverse Recovery Time 50 ns
Peak Reverse Current 25μA
Max Repetitive Reverse Voltage (Vrrm) 200V
Peak Non-Repetitive Surge Current 1kA
Diode Configuration 1 Pair Series Connection
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
