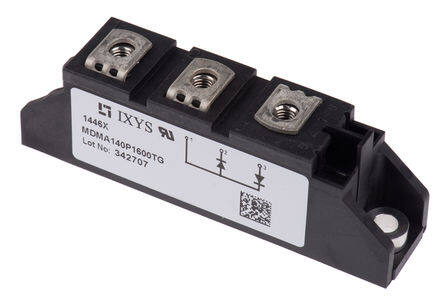

MDMA140P1600TG
RoHS
RoHS compliant
RoHS compliantPackage TO-240AA
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
SCR Modules Standard Rectifier Module
PDF
/
Buying Options
Total Price: USD $34.96
Unit Price: USD $34.9624
≥1 USD $34.9624
≥10 USD $31.15464
≥100 USD $27.345912
Inventory: 79
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 20.8mm
Length 92mm
Height 30mm
Technical
Diode Configuration 1 Pair Series Connection
Max Repetitive Reverse Voltage (Vrrm) 1.6kV
Peak Reverse Current 3.5mA
Number of Phases 1
Average Rectified Current 140A
Max Reverse Voltage (DC) 1.6kV
Voltage - DC Reverse (Vr) (Max) 1600V
Application GENERAL PURPOSE
Forward Current 140A
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.18V @ 140A
Current - Reverse Leakage @ Vr 200μA @ 1600V
Diode Type Standard
Speed Standard Recovery >500ns, > 200mA (Io)
Power Dissipation-Max 540W
Number of Elements 2
JESD-30 Code R-XUFM-X3
Pin Count 3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UPPER
HTS Code 8541.10.00.80
Additional Feature LOW LEAKAGE CURRENT, UL RECOGNIZED
Min Operating Temperature -40°C
Max Operating Temperature 150°C
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2014
Packaging Bulk
Physical
Diode Element Material SILICON
Number of Pins 7
Package / Case TO-240AA
Mounting Type Chassis Mount
Mount Chassis Mount, Panel
