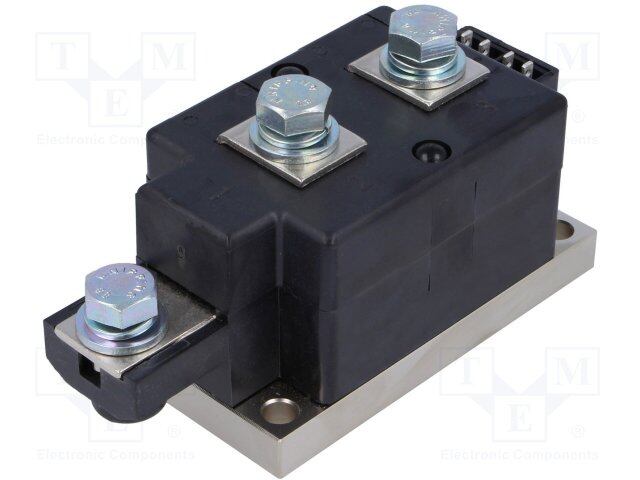

MDD710-22N2
RoHS
/
Package Module
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
DIODE MODULE 2.2KV 708A
PDF
/
Inventory: 7993
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Reverse Recovery Time-Max 23μs
Reverse Current-Max 50000μA
Diode Configuration 1 Pair Series Connection
Forward Voltage-Max 1.36V
Non-rep Pk Forward Current-Max 14000A
Number of Phases 1
Average Rectified Current 708A
Max Reverse Voltage (DC) 2.2kV
Voltage - DC Reverse (Vr) (Max) 2200V
Application GENERAL PURPOSE
Case Connection ISOLATED
Current - Reverse Leakage @ Vr 50mA @ 2200V
Diode Type Standard
Speed Standard Recovery >500ns, > 200mA (Io)
Number of Elements 2
Operating Temperature (Min) -40°C
Operating Temperature (Max) 150°C
JESD-30 Code R-PUFM-X3
Terminal Form UNSPECIFIED
Terminal Position UPPER
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2011
Packaging Bulk
Physical
Diode Element Material SILICON
Surface Mount NO
Package / Case Module
