MDD312-22N1
RoHS
RoHS compliant
RoHS compliantPackage Y1-CU
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description

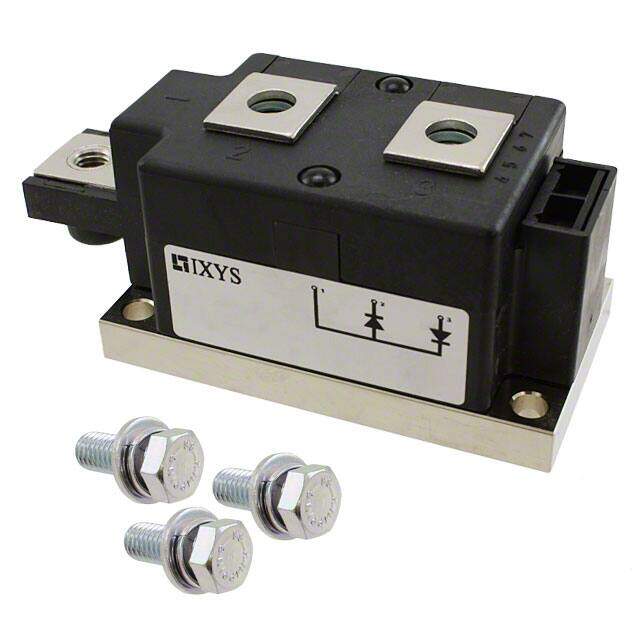

DIODE MODULE 2.2KV 310A Y1-CU
PDF
/
Inventory: 7426
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 50mm
Length 115mm
Height 49mm
Technical
Diode Configuration 1 Pair Series Connection
Reverse Voltage 2.2kV
Peak Non-Repetitive Surge Current 11.2kA
Max Repetitive Reverse Voltage (Vrrm) 2.2kV
Peak Reverse Current 30mA
Number of Phases 1
Average Rectified Current 310A
Max Reverse Voltage (DC) 2.2kV
Forward Voltage 1.32V
Voltage - DC Reverse (Vr) (Max) 2200V
Application GENERAL PURPOSE
Forward Current 310A
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.32V @ 600A
Current - Reverse Leakage @ Vr 30mA @ 2200V
Diode Type Standard
Speed Standard Recovery >500ns, > 200mA (Io)
Number of Elements 2
Qualification Status Not Qualified
Base Part Number MDD312
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UPPER
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Min Operating Temperature -40°C
Max Operating Temperature 150°C
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2012
Packaging Bulk
Physical
Diode Element Material SILICON
Number of Pins 3
Package / Case Y1-CU
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Screw
