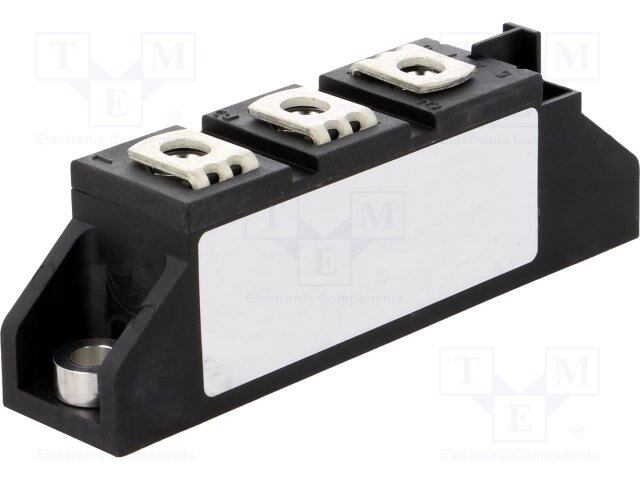

MDA95-22N1B
RoHS
RoHS compliant
RoHS compliantPackage TO-240AA
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
SCR Modules Water Cooled Moudles
PDF
/
Buying Options
Total Price: USD $44.14
Unit Price: USD $44.141302
≥1 USD $44.141302
≥10 USD $41.642736
≥100 USD $39.285595
≥500 USD $37.061885
≥1000 USD $34.96404
Inventory: 1332
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mount Screw
Mounting Type Screw Mount
Package / Case TO-240AA
Diode Element Material SILICON
Technical
Packaging Bulk
Published 2013
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Additional Feature LOW LEAKAGE CURRENT, PD-CASE, UL RECOGNIZED
HTS Code 8541.10.00.80
Terminal Position UPPER
Terminal Form UNSPECIFIED
Reference Standard IEC-60747
JESD-30 Code R-PUFM-X3
Operating Temperature (Max) 150°C
Number of Elements 2
Power Dissipation-Max 481W
Element Configuration Common Anode
Speed Standard Recovery >500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 200μA @ 2200V
Voltage - Forward (Vf) (Max) @ If 1.2V @ 150A
Case Connection ISOLATED
Operating Temperature - Junction -40°C~150°C
Application HIGH VOLTAGE
Voltage - DC Reverse (Vr) (Max) 2200V
Max Reverse Voltage (DC) 2.2kV
Average Rectified Current 120A
Number of Phases 1
Non-rep Pk Forward Current-Max 2570A
Diode Configuration 1 Pair Common Anode
Reverse Current-Max 200μA
Compliance
RoHS Status ROHS3 Compliant
