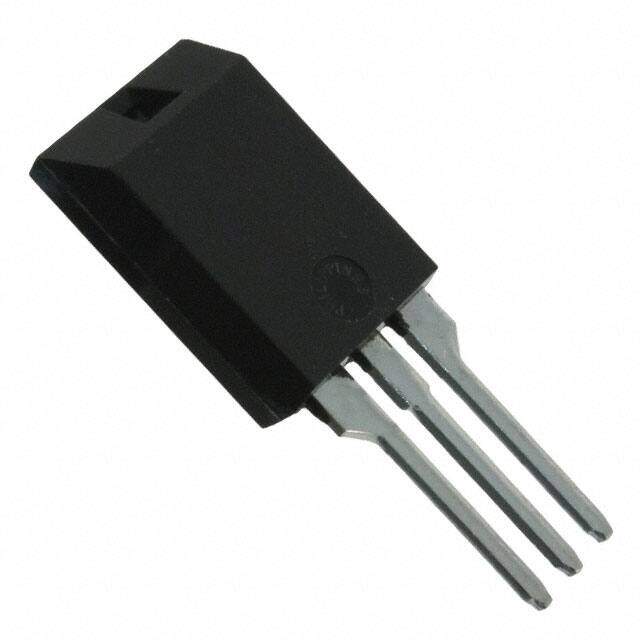

DSEE29-12CC
RoHS
RoHS compliant
RoHS compliantPackage ISOPLUS220?
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
Diode Switching 600V 30A 3-Pin(3+Tab) ISOPLUS 220
PDF
/
Buying Options
Total Price: USD $0.76
Unit Price: USD $0.75749
≥1 USD $0.75749
≥10 USD $0.71461
≥100 USD $0.67416
≥500 USD $0.636
≥1000 USD $0.6
≥3000 USD $0.56604
Inventory: 4675
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case ISOPLUS220?
Number of Pins 220
Diode Element Material SILICON
Technical
Packaging Tube
Published 2011
Series HiPerDynFRED?
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Terminal Finish TIN SILVER COPPER
Max Operating Temperature 175°C
Min Operating Temperature -55°C
Additional Feature FREE WHEELING DIODE, SNUBBER DIODE
HTS Code 8541.10.00.80
Subcategory Rectifier Diodes
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 3
JESD-30 Code R-PSIP-T3
Qualification Status Not Qualified
Number of Elements 2
Element Configuration Dual
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 500μA @ 600V
Voltage - Forward (Vf) (Max) @ If 1.62V @ 30A
Case Connection ISOLATED
Forward Current 30A
Operating Temperature - Junction -55°C~175°C
Max Surge Current 200A
Application SOFT RECOVERY
Forward Voltage 1.92V
Max Reverse Voltage (DC) 600V
Average Rectified Current 30A
Number of Phases 1
Reverse Recovery Time 35 ns
Peak Reverse Current 200μA
Max Repetitive Reverse Voltage (Vrrm) 1.2kV
Peak Non-Repetitive Surge Current 200A
Reverse Voltage 1.2kV
Diode Configuration 1 Pair Series Connection
Recovery Time 30 ns
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
