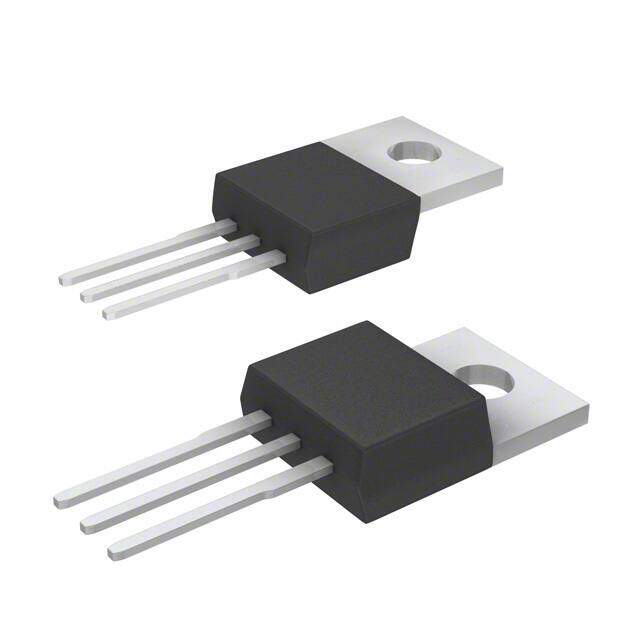

DSB60C45PB
RoHS
RoHS compliant
RoHS compliantPackage TO-220-3
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
DIODE ARRAY SCHOTTKY 45V TO220AB
PDF
/
Inventory: 4335
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Max Forward Surge Current (Ifsm) 320A
Diode Configuration 1 Pair Common Cathode
Peak Non-Repetitive Surge Current 320A
JEDEC-95 Code TO-220AB
Max Repetitive Reverse Voltage (Vrrm) 45V
Number of Phases 1
Average Rectified Current 30A
Max Reverse Voltage (DC) 45V
Forward Voltage 600mV
Application SOFT RECOVERY
Max Surge Current 320A
Operating Temperature - Junction -55°C~150°C
Max Reverse Leakage Current 10mA
Forward Current 30A
Voltage - Forward (Vf) (Max) @ If 630mV @ 30A
Current - Reverse Leakage @ Vr 10mA @ 45V
Diode Type Schottky
Speed Fast Recovery =< 500ns, > 200mA (Io)
Element Configuration Common Cathode
Number of Elements 2
Qualification Status Not Qualified
Pin Count 3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Additional Feature FREE WHEELING DIODE, HIGH RELIABILITY, LOW NOISE
Min Operating Temperature -55°C
Max Operating Temperature 150°C
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2006
Packaging Tube
Physical
Diode Element Material SILICON
Number of Pins 3
Package / Case TO-220-3
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 28 Weeks
