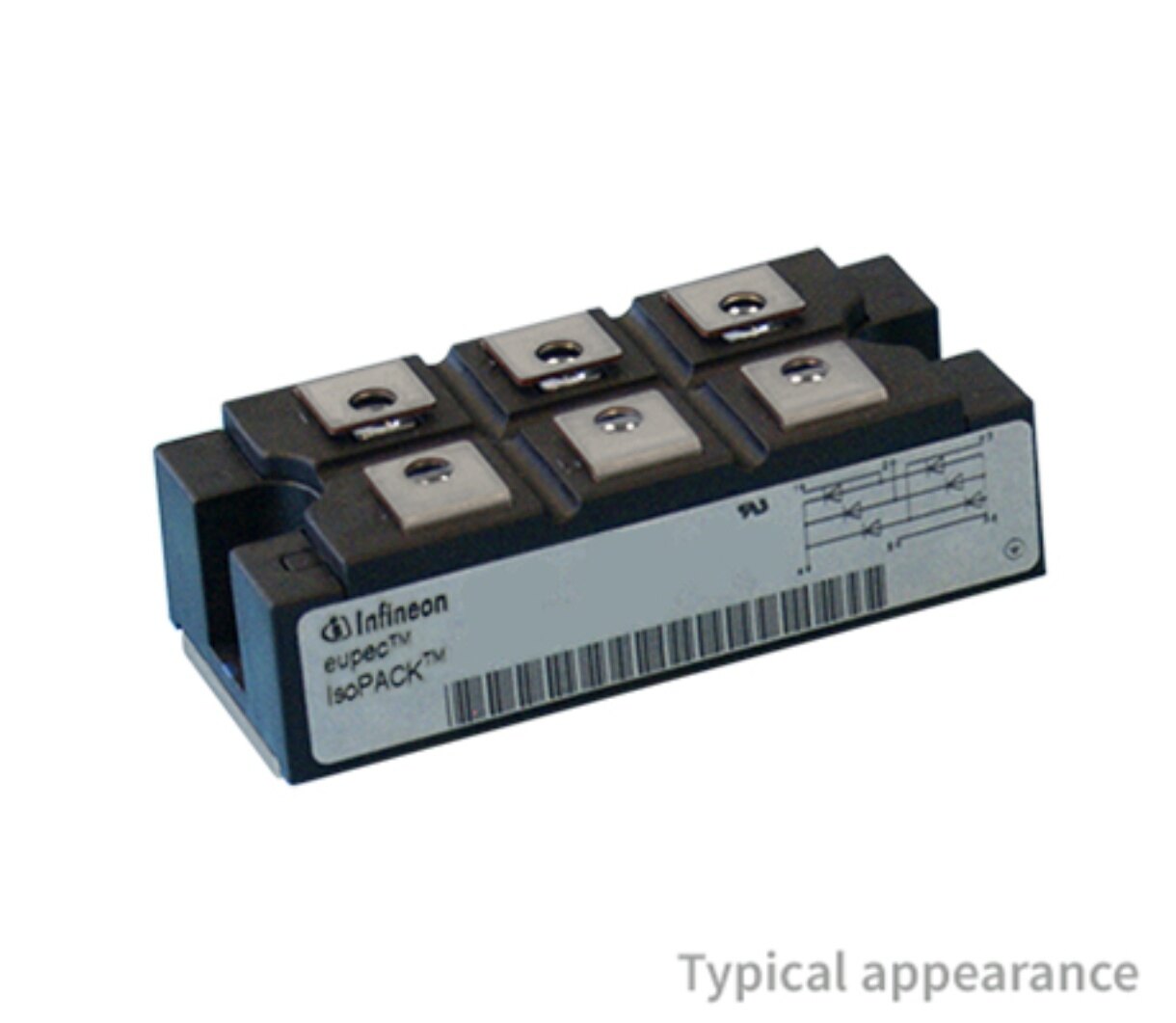

DDB6U205N16LHOSA1
RoHS
/
Package Module
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
DIODE MODULE GP 1600V
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 42mm
Length 94mm
Height 30mm
Technical
Reverse Voltage (DC) 1.6kV
Max Forward Surge Current (Ifsm) 1.6kA
Diode Configuration 3 Independent
Peak Non-Repetitive Surge Current 1.6kA
Max Repetitive Reverse Voltage (Vrrm) 1.6kV
Peak Reverse Current 10mA
Forward Voltage 1.47V
Voltage - DC Reverse (Vr) (Max) 1600V
Operating Temperature - Junction -40°C~150°C
Forward Current 200A
Voltage - Forward (Vf) (Max) @ If 1.47V @ 200A
Output Current 205A
Current - Reverse Leakage @ Vr 10mA @ 1600V
Diode Type Standard
Element Configuration Single
Number of Elements 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Min Operating Temperature -40°C
Max Operating Temperature 150°C
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Published 1999
Packaging Bulk
Physical
Number of Pins 6
Package / Case Module
Mounting Type Chassis Mount
Mount Panel, Screw
