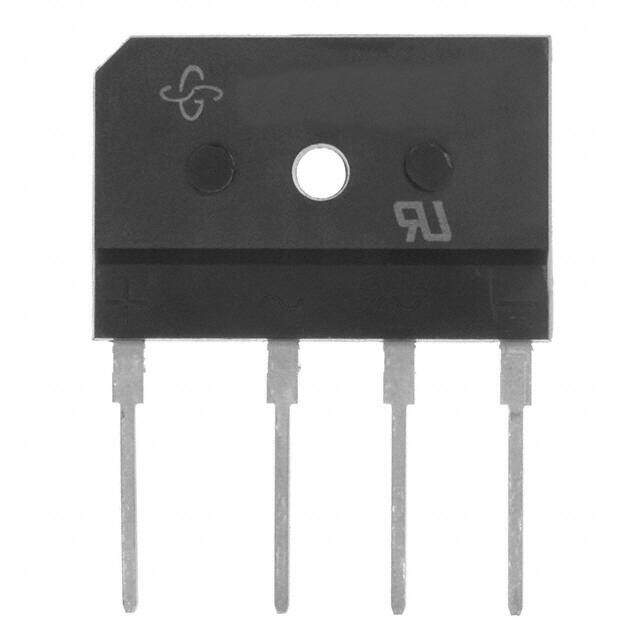

GSIB2040-E3/45 image
Favorite
GSIB2040-E3/45 image
Favorite
RoHS
RoHS RoHS compliant
Package 4-SIP, GSIB-5S
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description Bridge Rectifiers 400 Volt 20 Amp 240 Amp IFSM
PDF
/
Buying Options
Total Price: USD $3.73
Unit Price: USD $3.72601
≥1 USD $3.72601
≥200 USD $1.487516
≥500 USD $1.437626
≥1200 USD $1.41268
Inventory: 6798
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Width 4.6mm
Length 30mm
Height 20mm

Technical

Voltage - Peak Reverse (Max) 400V
Max Repetitive Reverse Voltage (Vrrm) 400V
Peak Reverse Current 10μA
Number of Phases 1
Max Surge Current 240A
Max Reverse Leakage Current 10μA
Forward Current 3.5A
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1V @ 10A
Current - Reverse Leakage @ Vr 10μA @ 400V
Diode Type Single Phase
Element Configuration Single
Number of Elements 4
Pin Count 4
Technology Standard
Subcategory Bridge Rectifier Diodes
Additional Feature UL RECOGNIZED
Terminal Finish Matte Tin (Sn)
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2011
Packaging Tube
Operating Temperature -55°C~150°C TJ

Physical

Diode Element Material SILICON
Number of Pins 4
Package / Case 4-SIP, GSIB-5S
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 7 Weeks
