G2SB60-M3/45
RoHS
RoHS compliant

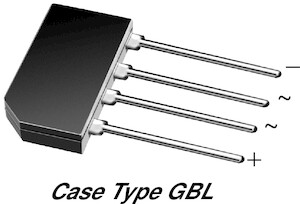

RoHS compliantPackage 4-SIP, GBL
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
BRIDGE RECT 1PHASE 600V 1.5A GBL
PDF
/
Inventory: 3134
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Breakdown Voltage-Min 600V
Voltage - Peak Reverse (Max) 600V
Non-rep Pk Forward Current-Max 80A
Number of Phases 1
Current - Average Rectified (Io) 1.5A
Output Current-Max 1.5A
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1V @ 750mA
Current - Reverse Leakage @ Vr 5μA @ 200V
Diode Type Single Phase
Configuration BRIDGE, 4 ELEMENTS
Number of Elements 4
JESD-30 Code R-PSIP-T4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code unknown
Peak Reflow Temperature (Cel) NOT SPECIFIED
Technology Standard
Additional Feature UL RECOGNIZED
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2017
Packaging Tube
Operating Temperature -55°C~150°C TJ
Physical
Diode Element Material SILICON
Package / Case 4-SIP, GBL
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 8 Weeks
