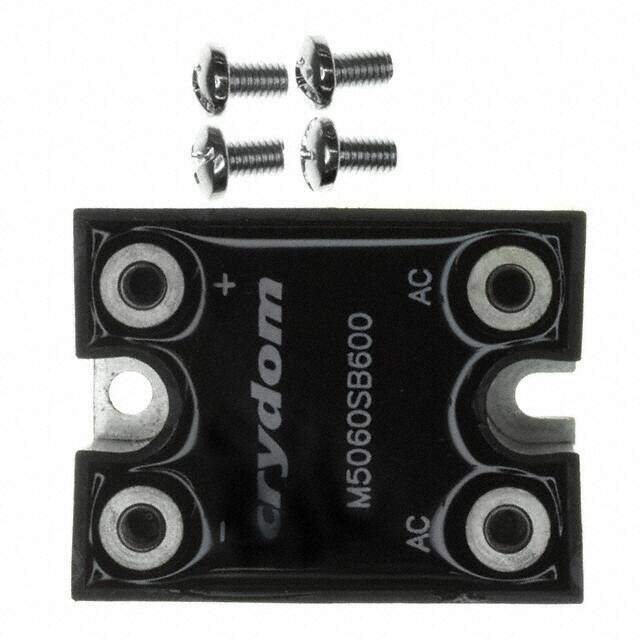

M5060SB600
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
CRYDOM M5060SB600 POWER MODULE, SINGLE PHASE, 240V, 60A
PDF
/
Buying Options
Total Price: USD $133.99
Unit Price: USD $133.985384
≥1 USD $133.985384
≥195 USD $53.461288
≥495 USD $51.675744
≥1005 USD $50.792162
Inventory: 2855
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 44.3992mm
Length 57.4802mm
Height 24.1046mm
Technical
Voltage - Peak Reverse (Max) 600V
Reverse Voltage 240V
Peak Non-Repetitive Surge Current 800A
Max Repetitive Reverse Voltage (Vrrm) 240V
Forward Voltage 1.35V
Current - Average Rectified (Io) 60A
Forward Current 60A
Voltage - Forward (Vf) (Max) @ If 1.35V @ 50A
Output Current 60A
Diode Type Single Phase
Element Configuration Single
Number of Elements 1
Output Voltage 240V
Current Rating 60A
Technology Standard
Voltage - Rated DC 600V
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2009
Packaging Bulk
Operating Temperature -40°C~125°C TJ
Physical
Supplier Device Package Module
Number of Pins 4
Package / Case Module
Mounting Type Chassis Mount
Mount Chassis Mount, Screw, Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
