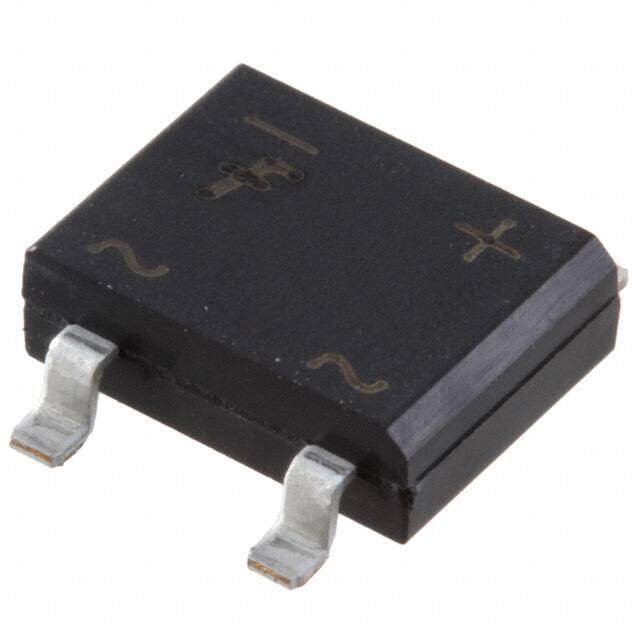

DF06S2
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, Gull Wing
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
Bridge Rectifiers 600V, 2A BRIDGE, SDIP
PDF
/
Buying Options
Total Price: USD $2.15
Unit Price: USD $2.14795
≥1 USD $2.14795
≥10 USD $1.7632
≥100 USD $1.7081
≥500 USD $1.653
≥1000 USD $1.5979
Inventory: 5705
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Mount Through Hole
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Weight 484mg
Diode Element Material SILICON
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tape & Reel (TR)
Published 2017
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Tin (Sn)
HTS Code 8541.10.00.80
Subcategory Bridge Rectifier Diodes
Technology Standard
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDSO-G4
Number of Elements 4
Configuration BRIDGE, 4 ELEMENTS
Diode Type Single Phase
Current - Reverse Leakage @ Vr 5μA @ 600V
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Forward Current 2A
Max Surge Current 85A
Output Current-Max 2A
Forward Voltage 1.1V
Number of Phases 1
Peak Reverse Current 3μA
Max Repetitive Reverse Voltage (Vrrm) 600V
Max Forward Surge Current (Ifsm) 85A
Reverse Voltage (DC) 420V
Dimensions
Height 2.6mm
Length 8.51mm
Width 6.5mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
