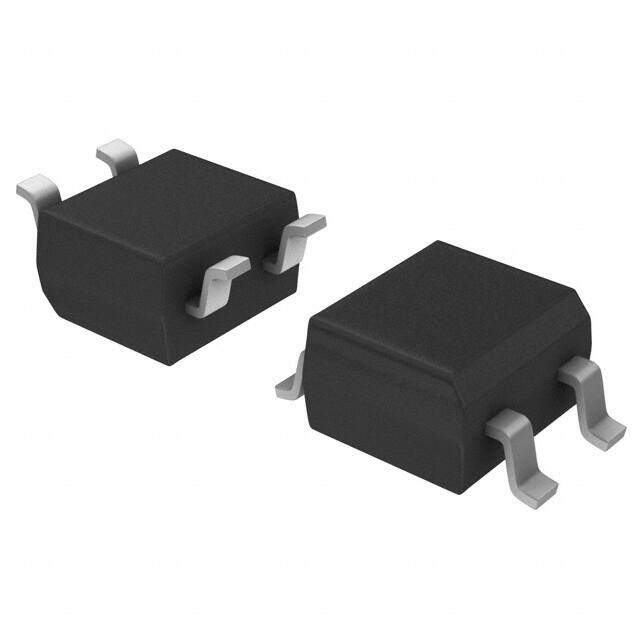

MB1S-TP
RoHS
RoHS compliant
RoHS compliantPackage TO-269AA, 4-BESOP
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
BRIDGE RECT 1P 100V 500MA MBS-1
PDF
/
Buying Options
Total Price: USD $0.31
Unit Price: USD $0.308
≥1 USD $0.308
≥10 USD $0.24024
≥100 USD $0.143968
≥500 USD $0.13332
≥1000 USD $0.090658
Inventory: 63064
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case TO-269AA, 4-BESOP
Surface Mount YES
Diode Element Material SILICON
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tape & Reel (TR)
Published 2005
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Terminal Finish MATTE TIN
Additional Feature UL RECOGNIZED
HTS Code 8541.10.00.70
Breakdown Voltage-Min 100V
Voltage - Peak Reverse (Max) 100V
Reverse Current-Max 5μA
Non-rep Pk Forward Current-Max 35A
Number of Phases 1
Current - Average Rectified (Io) 500mA
Output Current-Max 0.5A
Voltage - Forward (Vf) (Max) @ If 1V @ 400mA
Current - Reverse Leakage @ Vr 5μA @ 100V
Diode Type Single Phase
Configuration BRIDGE, 4 ELEMENTS
Number of Elements 4
Qualification Status Not Qualified
JESD-30 Code R-PDSO-G4
Pin Count 4
Base Part Number MB1
Time@Peak Reflow Temperature-Max (s) 10
Reach Compliance Code not_compliant
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology Standard
Subcategory Bridge Rectifier Diodes
Compliance
RoHS Status ROHS3 Compliant
