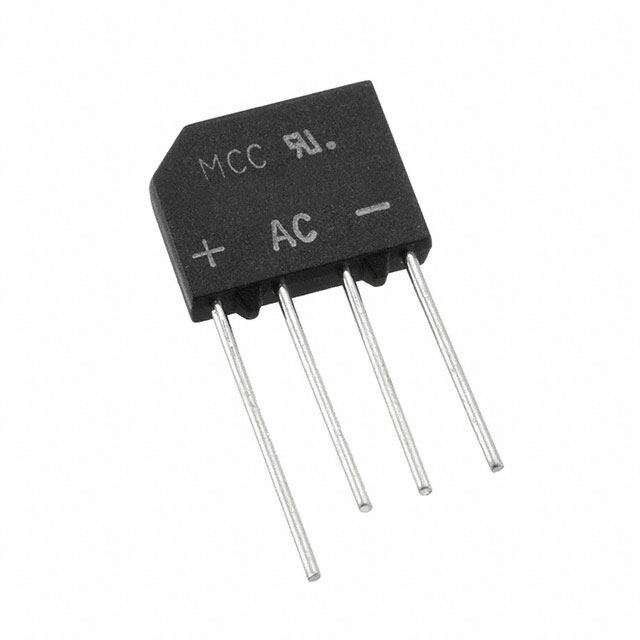

KBP210-BP
RoHS
RoHS compliant
RoHS compliantPackage 4-SIP, KBPR
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
BRIDGE RECT 1PHASE 1KV 2A KBPR
PDF
/
Inventory: 995
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Through Hole
Package / Case 4-SIP, KBPR
Surface Mount NO
Diode Element Material SILICON
Technical
Operating Temperature -55°C~150°C TJ
Packaging Bulk
Published 2005
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Additional Feature UL RECOGNIZED
HTS Code 8541.10.00.80
Technology Standard
Terminal Form WIRE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 4
JESD-30 Code R-PSIP-W4
Qualification Status Not Qualified
Number of Elements 4
Configuration BRIDGE, 4 ELEMENTS
Diode Type Single Phase
Current - Reverse Leakage @ Vr 10μA @ 1000V
Voltage - Forward (Vf) (Max) @ If 1.1V @ 2A
Case Connection ISOLATED
Output Current-Max 2A
Current - Average Rectified (Io) 2A
Number of Phases 1
Non-rep Pk Forward Current-Max 50A
Voltage - Peak Reverse (Max) 1kV
Breakdown Voltage-Min 1000V
Compliance
RoHS Status ROHS3 Compliant
