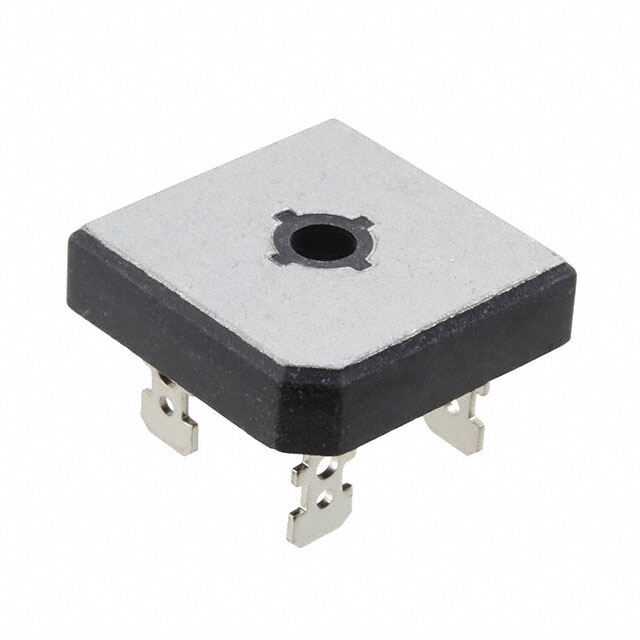

GBPC5006-BP
RoHS
RoHS compliant
RoHS compliantPackage 4-Square, GBPC
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
BRIDGE RECT 1PHASE 600V 50A GBPC
PDF
/
Buying Options
Total Price: USD $3.72
Unit Price: USD $3.7224
≥1 USD $3.7224
≥10 USD $3.12488
≥100 USD $2.387308
≥500 USD $2.246886
≥1000 USD $1.9239
≥3000 USD $1.81155
Inventory: 466
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type QC Terminal
Package / Case 4-Square, GBPC
Surface Mount NO
Diode Element Material SILICON
Technical
Operating Temperature -55°C~150°C TJ
Packaging Bulk
Published 2005
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Additional Feature UL RECOGNIZED
Technology Standard
Terminal Position UPPER
Terminal Form SOLDER LUG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code S-PUFM-D4
Number of Elements 4
Configuration BRIDGE, 4 ELEMENTS
Diode Type Single Phase
Current - Reverse Leakage @ Vr 5μA @ 600V
Voltage - Forward (Vf) (Max) @ If 1.1V @ 25A
Output Current-Max 50A
Current - Average Rectified (Io) 50A
Number of Phases 1
Non-rep Pk Forward Current-Max 500A
Voltage - Peak Reverse (Max) 600V
Breakdown Voltage-Min 600V
Compliance
RoHS Status ROHS3 Compliant
