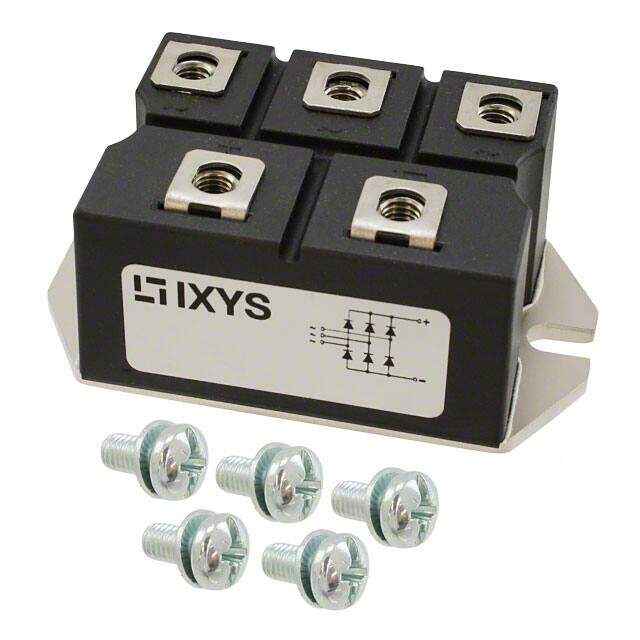

VUO62-12NO7
RoHS
RoHS compliant
RoHS compliantPackage PWS-D
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
Diode Rectifier Bridge Single 1.2KV 60A 5-Pin PWS-D
PDF
/
Inventory: 4033
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Chassis Mount, Panel, Screw
Mounting Type Chassis Mount
Package / Case PWS-D
Number of Pins 5
Diode Element Material SILICON
Technical
Operating Temperature -40°C~150°C TJ
Packaging Bulk
Published 2000
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Additional Feature UL RECOGNIZED
Subcategory Bridge Rectifier Diodes
Technology Standard
Terminal Position UPPER
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number VUO62
Pin Count 5
Voltage - Rated AC 400V
Qualification Status Not Qualified
Max Output Current 63A
Number of Elements 1
Element Configuration Single
Diode Type Three Phase
Current - Reverse Leakage @ Vr 300μA @ 1200V
Power Dissipation 110W
Voltage - Forward (Vf) (Max) @ If 1.8V @ 150A
Case Connection ISOLATED
Forward Current 63A
Max Reverse Leakage Current 1.5mA
Max Surge Current 550A
Forward Voltage 1.8V
Average Rectified Current 63A
Number of Phases 3
Peak Reverse Current 300μA
Max Repetitive Reverse Voltage (Vrrm) 1.2kV
Hole Diameter 5.3 mm
Peak Non-Repetitive Surge Current 595A
Max Forward Surge Current (Ifsm) 550A
Dimensions
Height 30mm
Length 72mm
Width 42mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
